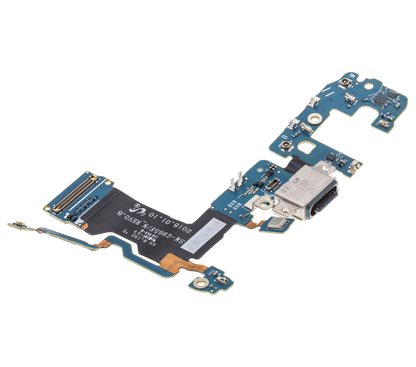

Charging Port Flex Cable Assembly Compatible with Samsung Galaxy S9 Plus

A loose port or broken connection ribbon shouldn't stop your phone from working safely. Here at Franchitti's Fix, we provide reliable, straightforward components built to match factory specifications. This Standard Tier replacement charging port flex cable assembly fixes unstable power draw, USB-C detection failures, and critical system reboots by refreshing the main power bus and sensory data traces along the lower frame channel.

📊 Specifications & Features

• Quality Grade: Standard Tier (High-Grade Reliable Aftermarket Core). Learn more about our strict quality tier standards in our Parts Quality Guide.
• Hardware Included: Complete lower board assembly containing the USB Type-C charging receptacle, integrated primary call microphone, thermal tracking circuitry, and RF antenna wire base contacts.
• Common Faults Resolved:
  • Looping Kernel Panic Restarts: Resolves random or timed system reboots caused by a damaged or shorted thermal thermistor sensor built into the lower dock array.
  • Loose USB-C Links & Intermittent Charging: Replaces worn or physically corroded internal charger socket walls so your fast-charge cables click tightly into place again.
  • Primary Voice Microphone Failures: Fixes instances where callers hear nothing but static, muffled whispers, or total silence on standard phone calls.
  • Slow Data Transfer or Computer Sync Drops: Rebuilds broken internal high-speed data transmission lines to re-establish stable USB data hookups with PCs and Macs.

⚙️ Configuration Settings (Sold Individually)

Variant: Regional Motherboard Configuration
Please check your phone's specific settings or model number before ordering. These three variants are strictly non-interchangeable:

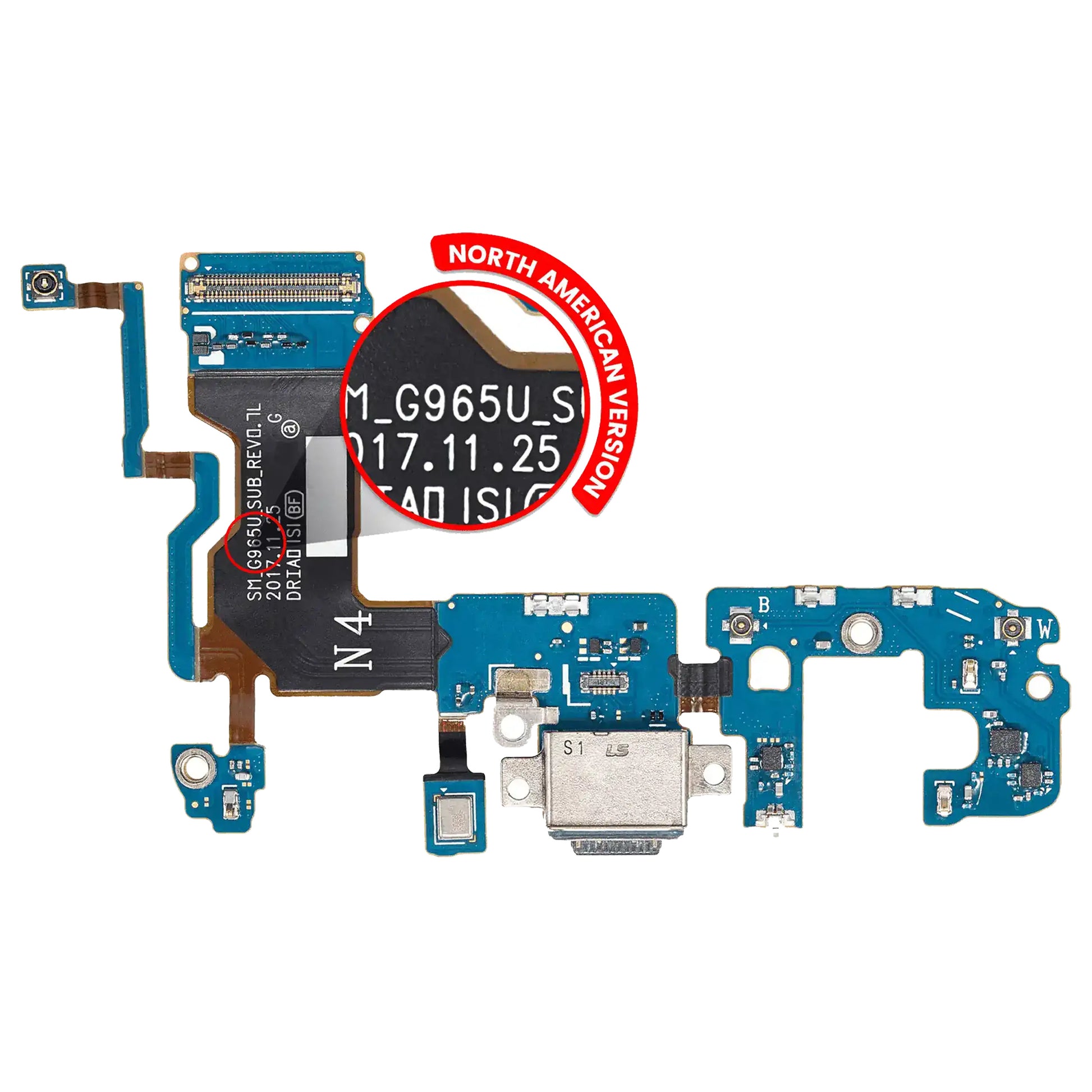

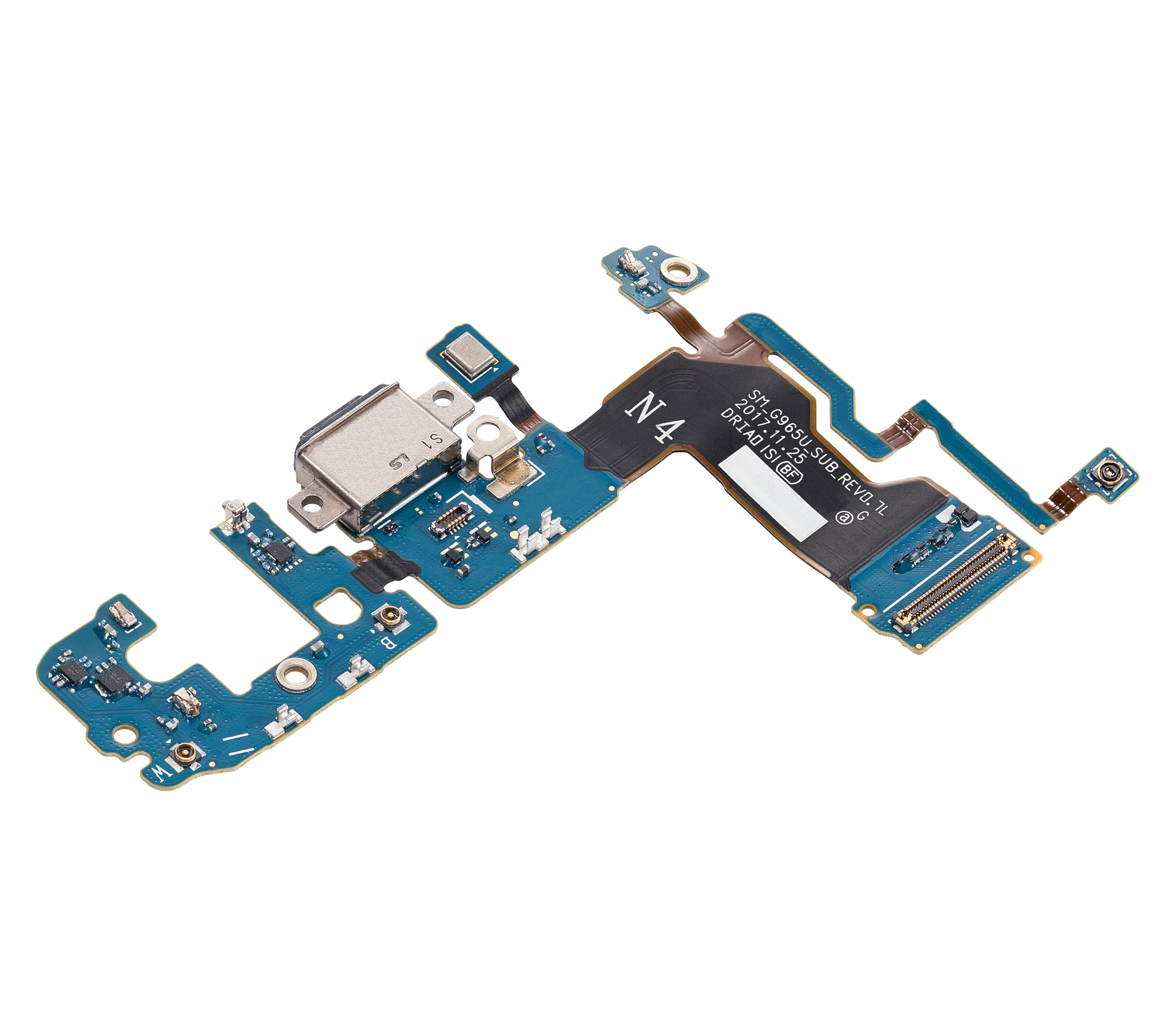

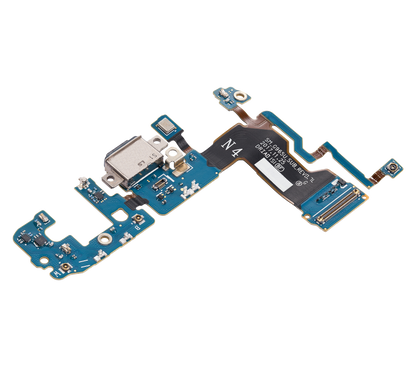

• 🗽 US Version: Fits model SM-G965U.

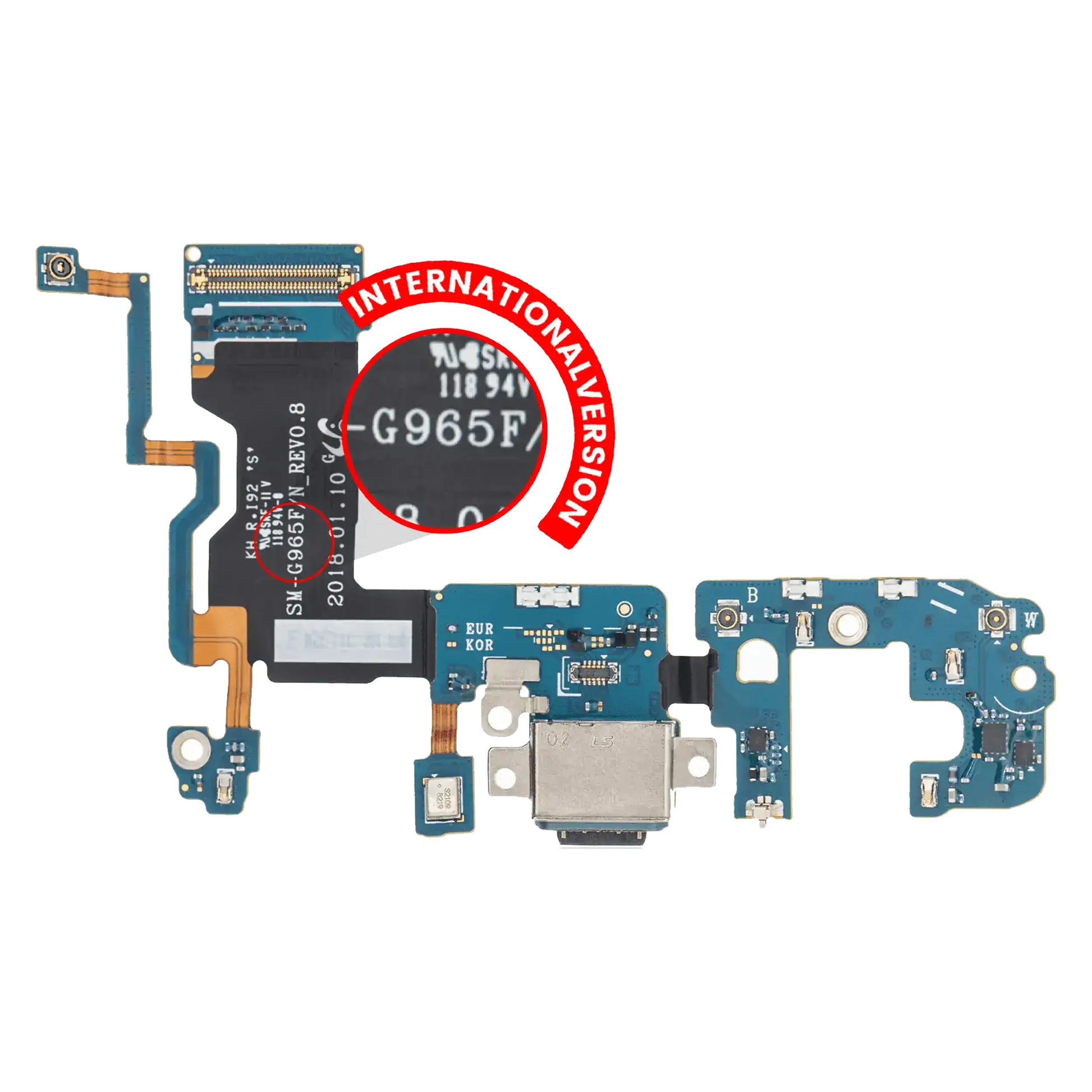

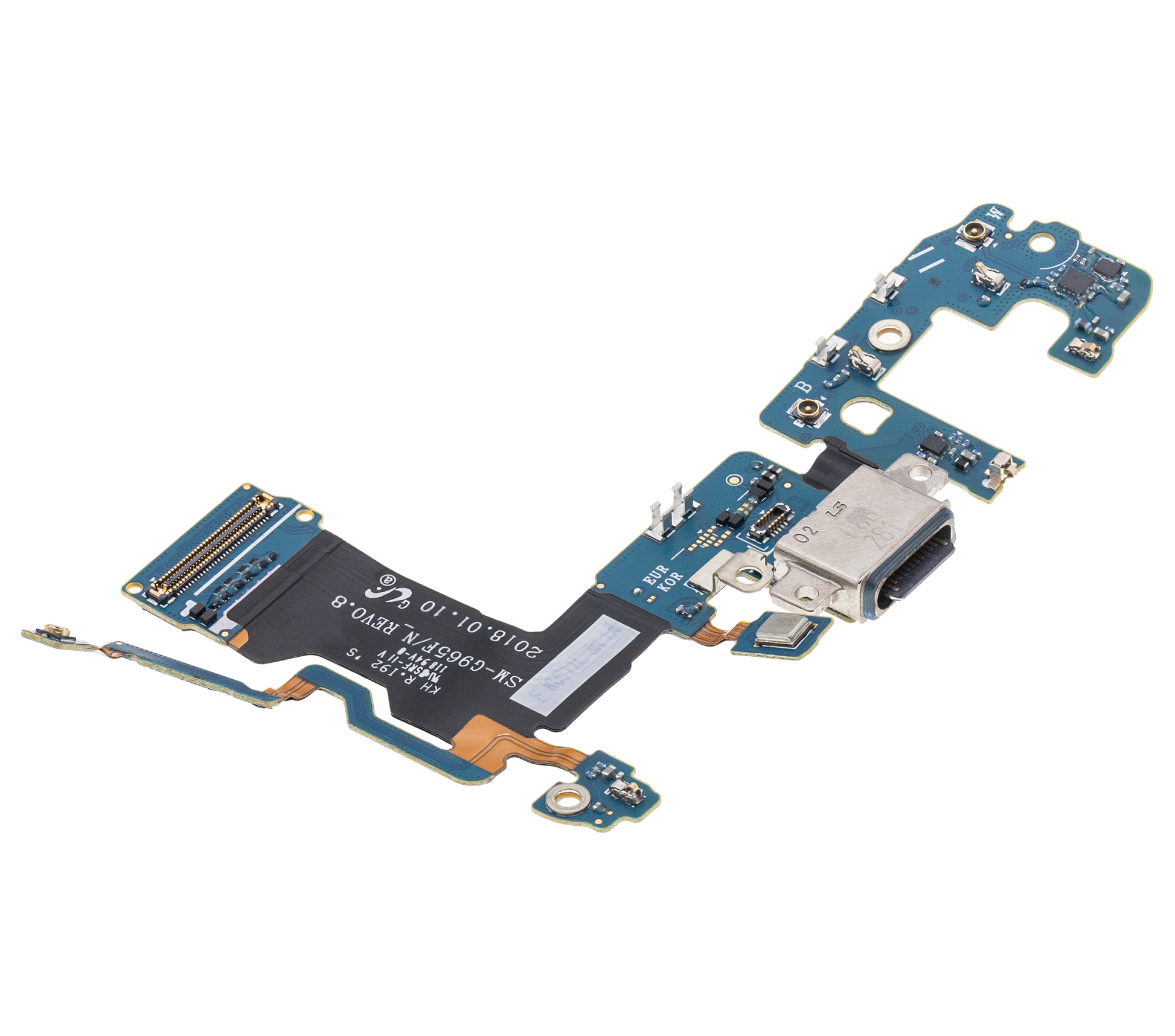

• 🌐 International Version: Fits single-SIM model SM-G965F.

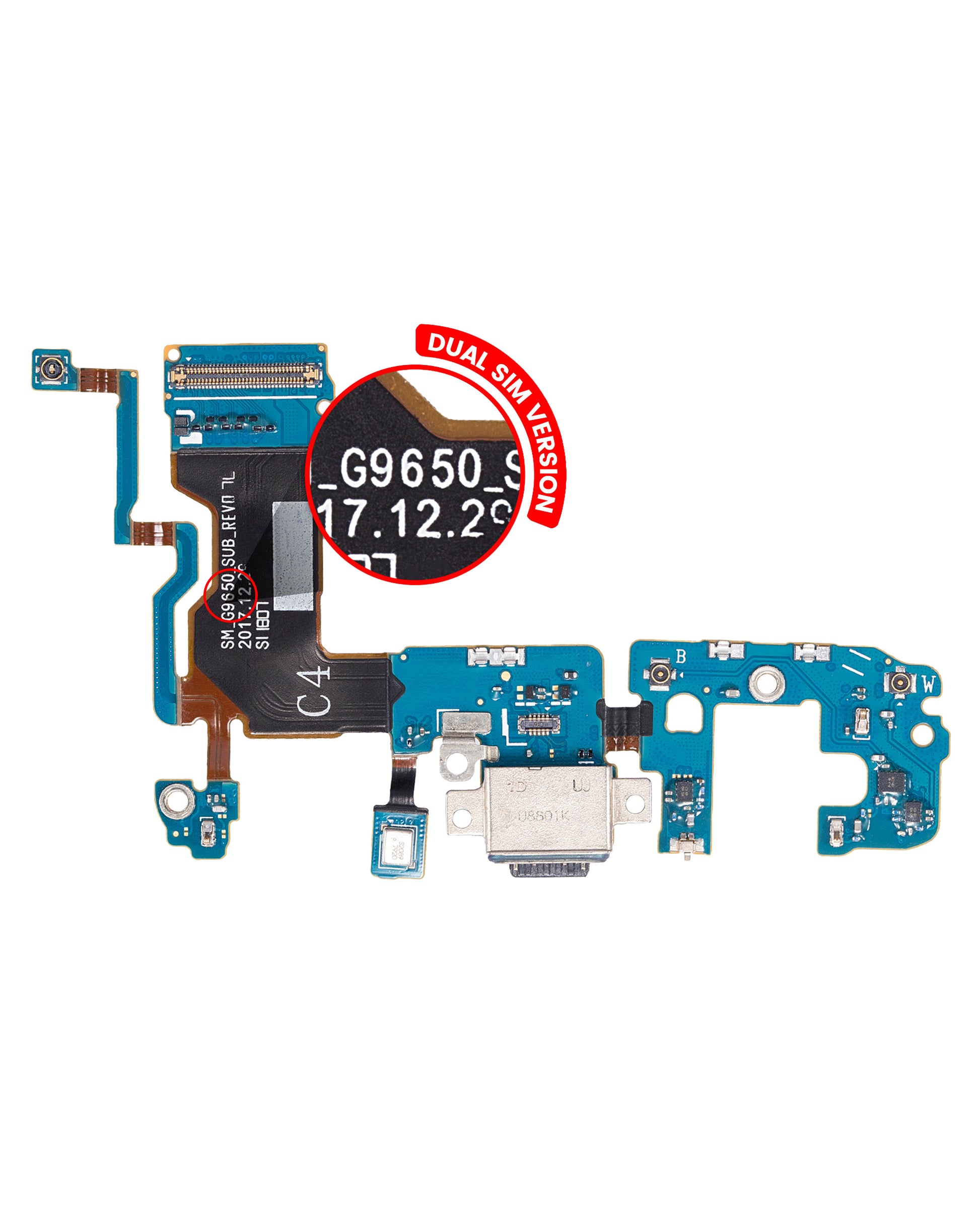

• 2️⃣ Dual SIM Version: Fits variant model SM-G9650 / SM-G965F/DS.

⚠️ Technical Notice & Handling

⚡ Battery Disconnect Warning: Disconnect your battery before touching internal connectors. Internal logic board components can easily short out if live power or signal lines make contact with metal pry tools.

⚠️ Installation Disclaimer: This component must be installed carefully to prevent damage to surrounding internal hardware. Backed by Franchitti's standard part exchange policy.

📦 Package Information

• Contents: (1) Charging Port Flex Cable Assembly Compatible with Samsung Galaxy S9 Plus.
• Packaging: Moisture-sealed in a static-shielded ESD protective packet.
