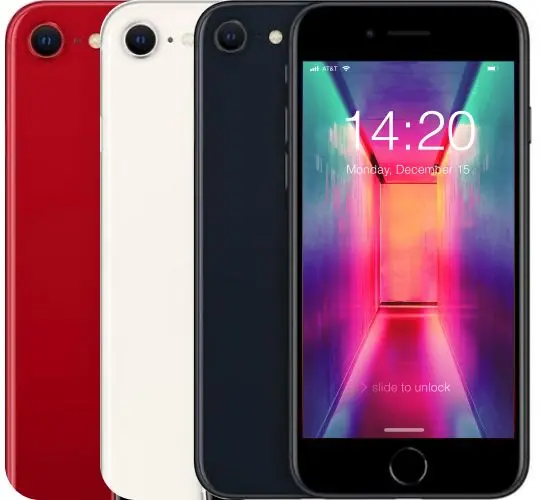

iPhone SE (2022) Repair Services

Engineering Matrix:

• Display: 4.7-inch Retina HD Screen (Advanced IPS LCD)
• Screen Resolution: 1334 x 750 Pixel Resolution at 326 ppi
• Refresh Rate: 60Hz Smooth-Motion Refresh Technology
• Screen Brightness: 625 Nits Max Typical Brightness
• Front Glass: Custom Ion-Exchange Toughened Front Glass
• Processor: Apple A15 Bionic Chip | 5-Nanometer Architecture
• Graphics: 4-Core Apple-Designed Graphics Processor
• System Memory: 4GB High-Bandwidth RAM | 16-Core Neural Engine

Hardware Components & Housing:

• Rear Panel: Classic Polished Gloss Textured Back Glass
• Frame: 7000 Series Aerospace-Grade Anodized Aluminum Mid-Frame & Band
• Thermal System: Internal Graphitic Heat Spreader Matrix Sheet
• Rear Camera: 12MP Wide Camera (28mm, f/1.8, Optical Image Stabilization)
• Ultra-Wide & Telephoto: Not Applicable (Singular Rear Lens Housing)
• Front Camera: 7MP FaceTime HD Camera with Smart HDR 4 Processing (f/2.2)
• Battery: High-Density 2,018mAh Lithium-Ion | Up to 15 Hours Video Playback
• Charging Port: Native Apple Lightning Port supporting USB 2.0 Speeds
• Microphones: Multi-Microphone Noise Cancellation Array with Stereo Audio Capture
• Speakers: Balanced Dual Stereo Speaker Configuration
• Wireless: 5G Sub-6GHz | Wi-Fi 6 (802.11ax with 2x2 MIMO) | Bluetooth 5.0

Local AI Efficiency: Why does local AI bandwidth matter? Most cloud-based AIs run on massive data centers using thousands of server chips. The A15 Bionic inside the iPhone SE (2022) features a flagship-grade, dedicated 16-core Neural Engine engineered to calculate secure on-device tasks—like photo element separation, text tracking, and image noise cleanup—locally on the silicon. It processes your intelligent commands right in your pocket, using minimal battery capacity and avoiding external server handshakes.

Parts Compatibility: The iPhone SE (2022) utilizes an iconic classic chassis shape shared with the older iPhone 8 and SE (2020) generations. For repair technicians, this brings an incredible hardware sourcing advantage since standard sub-components like the home button assembly, rear cameras, and internal adhesive cuts feature immense part-matching cross-compatibility. However, the logic board and the battery flex connectors are strictly upgraded for the A15 Bionic power rails.

Touch ID Security: Touch ID does not capture a flat picture of your fingerprint to unlock your phone, which could easily be tricked by a copy. Instead, the sapphire crystal ring beneath your thumb detects a structural charge change. It fires an advanced capacitive sensor that maps microscopic, three-dimensional sub-epidermal ridge structures across your skin. It immediately converts this physical layout into an encrypted, mathematical code stored safely in an isolated sub-system of the A15 silicon.

Back Glass Done Right: Shops that skip prep finish a back glass job in about an hour and leave glue residue behind. We clean the frame, protect the parts inside, and reseal the new glass with fresh adhesive, so the repair takes a few hours and holds up the way it should.
