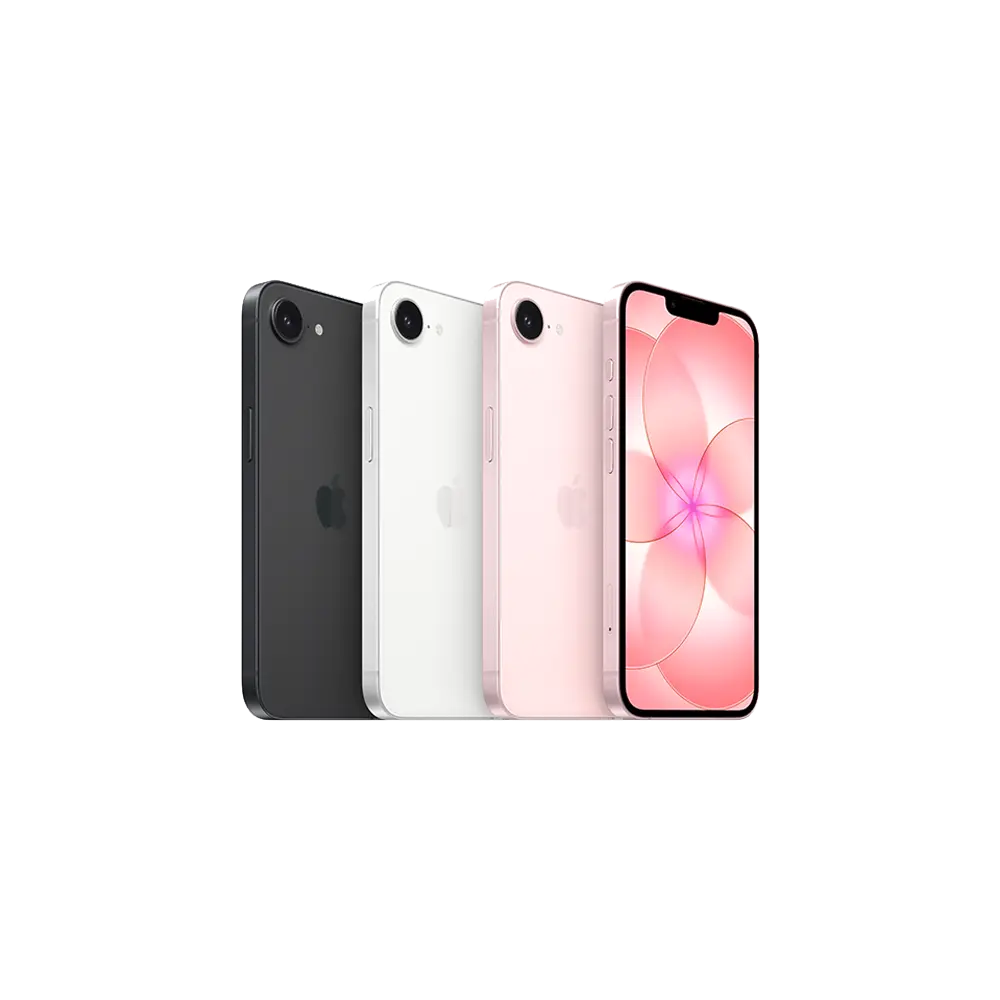

iPhone 17e Repair Services

Engineering Matrix:

• Display: 6.1-inch Super Retina XDR OLED Screen
• Screen Resolution: 2532 x 1170 Pixel Resolution at 460 ppi
• Refresh Rate: 60Hz Standard Refresh Tier Architecture
• Screen Brightness: 800 Nits Max Typical | 1,200 Nits Peak HDR Brightness
• Front Glass: Ceramic Shield 2 Cover with Advanced Anti-Reflective Glare Coating
• Processor: Apple A19 Chip | 3-Nanometer Architecture Node (4-Core GPU)
• System Memory: 8GB High-Bandwidth RAM | 16-Core Neural Processing Engine

Hardware Components & Housing:

• Rear Panel: Tinted Premium Matte Finish Back Glass Panel
• Frame: 100% Recycled Structural Aluminum Band & Chassis Core
• Physical Notch: Classic Face ID Display Notch (Omits Dynamic Island Frame)
• Exterior Controls: Customizable Action Button | Standard Mechanical Volume Pins (Omits Camera Control)
• Rear Camera: 48MP Fusion Main Optic (f/1.6, Sensor-Shift OIS, Hybrid Focus Pixels)
• Digital Zoom: Up to 10x Digital Capture Expansion | 2x Optical-Quality Sensor Crop
• Front Camera: 12MP TrueDepth Camera with Secure 3D Face ID Mapping
• Battery: Lithium-Ion | Up to 26 Hours Video Playback
• Charging Integration: USB-C Wired Charging (USB 2 Speeds) | MagSafe & Qi2 Wireless Charging
• Networking Silicon: Apple C1X Custom 5G Modem (Wi-Fi 6 802.11ax | Bluetooth 5.3)

Screen Compatibility: A massive customer misconception regarding the iPhone 17e is that it shares display panel layers with the standard iPhone 17. The iPhone 17e utilizes a classic screen design with a physical camera notch holding a standard 60Hz panel refresh architecture. It is structurally and chemically incompatible with the larger 6.3-inch 120Hz Dynamic Island screens used on the regular 17 series models.

Shared Screen With The 16e: The iPhone 17e uses the same 6.1-inch screen design as the iPhone 16e, which keeps replacement screens affordable and easy to stock. Other parts, like the back glass and battery, are specific to each model, so we confirm the exact model before ordering.

C1X Modem And Wi-Fi: Unlike the rest of the 17 lineup, the iPhone 17e does not use the high-tier Apple N1 wireless networking module, meaning its internal antenna array is configured for Wi-Fi 6 instead of Wi-Fi 7. However, it introduces the custom Apple C1X 5G baseband cellular modem. If a customer experiences signal dropouts or poor cell tower tracking after a repair, a common misconception is that the cellular chip is fried—the C1X architecture utilizes precise independent grounding frame pads that must have flawless physical contact with the aluminum chassis during rebuild assembly.

Back Glass Done Right: Shops that skip prep finish a back glass job in about an hour and leave glue residue behind. We clean the frame, protect the parts inside, and reseal the new glass with fresh adhesive, so the repair takes a few hours and holds up the way it should.
