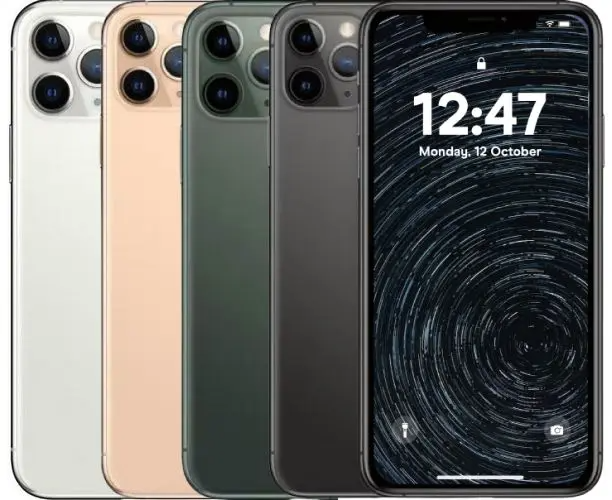

iPhone 11 Pro Max Repair Services

Engineering Matrix:

• Display: 6.5-inch Super Retina XDR OLED Display
• Screen Resolution: 2688 x 1242 Pixel Resolution at 458 ppi
• Contrast Ratio: 2,000,000:1 True Black Contrast Ratio
• Refresh Rate: 60Hz Standard Refresh Matrix Architecture
• Screen Brightness: 800 Nits Max Typical | 1,200 Nits Peak HDR Brightness
• Front Glass: Toughened Scratch-Resistant Glass Cover with Oleophobic Coating
• Processor: Apple A13 Bionic Chip | 7-Nanometer Manufacturing Node
• System Memory: 4GB LPDDR4X RAM | 8-Core Dedicated Neural Engine

Hardware Components & Housing:

• Rear Panel: Fused Textured Satin Matte Back Glass Panel
• Frame: Surgical-Grade Polished Stainless Steel Enclosure Structural Band
• Biometrics: TrueDepth Camera Array Block (Secure 3D Face ID Mapping Validation)
• Audio Output: Spatial Stereo Sound Chambers with Dolby Atmos Simulation
• Rear Camera (wide): 12MP Main Focal Optic (f/1.8 Aperture, Optical Image Stabilization)
• Rear Camera (ultra-Wide): 12MP Field Optic (f/2.4 Aperture, 120° Ultrawide Field of View)
• Rear Camera (telephoto): 12MP Zoom Optic (f/2.0 Aperture, Optical Image Stabilization, 2x Optical Zoom)
• Front Camera: 12MP TrueDepth Autofocus Camera (f/2.2 Aperture Layout)
• Battery: 3969 mAh Lithium-Ion Cell Matrix
• Charging Port: Standard 8-Pin Lightning Data & Power Connection Port
• Connectivity: 4G LTE Gigabit-Class | Wi-Fi 6 (802.11ax) | Bluetooth 5.0 | Ultra Wideband (UWB) U1 Spatial Chip

Screen Compatibility: A common customer misconception about the iPhone 11 Pro Max is that its display screen is interchangeable with the standard iPhone 11 because they belong to the same generation. The standard 11 utilizes a thick-bezeled LCD screen structure, while the 11 Pro Max relies on a premium, ultra-thin flexible OLED assembly. The display flex cable positions, motherboard pin structures, and screen chassis clips are entirely different. Trying to mix these components up will permanently damage the logic board socket filters.

Back Glass Construction: The iPhone 11 Pro Max features a textured satin matte back glass panel that is structurally fused directly over the internal wireless charging coils using commercial-strength permanent factory adhesive. Replacing a cracked back plate independently requires precise heat management or a specialized repair laser machine to avoid overheating the underlying battery chamber. Technicians must note that the camera lens bezel ring is welded to the stainless steel chassis from the inside, meaning standalone replacement glass must be broken away carefully around the camera frame.

Face ID Flex Transfer: When completing a display screen replacement on an iPhone 11 Pro Max, the upper earpiece speaker, ambient light sensor, and flood illuminator flex ribbon module must be transferred to the new panel. This sensor array is cryptographically paired directly to the individual phone logic board. If a technician accidentally tears or nicks this highly fragile top ribbon during the swap, secure Face ID biometric tracking will fail permanently, and the device will no longer handle auto-brightness adjustments correctly.

Back Glass Done Right: Shops that skip prep finish a back glass job in about an hour and leave glue residue behind. We clean the frame, protect the parts inside, and reseal the new glass with fresh adhesive, so the repair takes a few hours and holds up the way it should.
