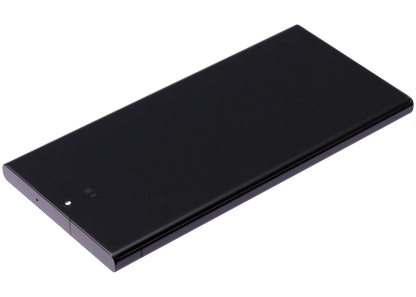

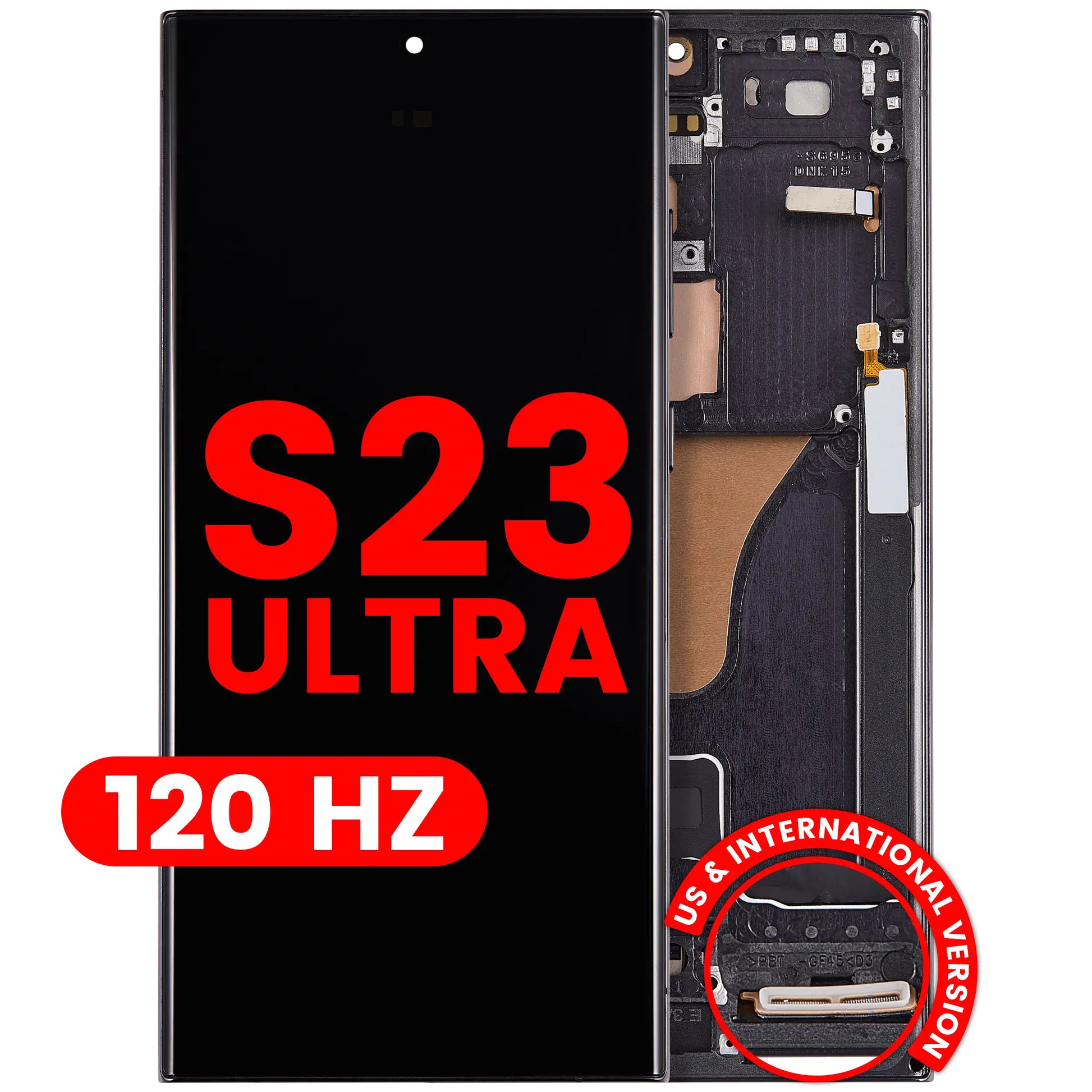

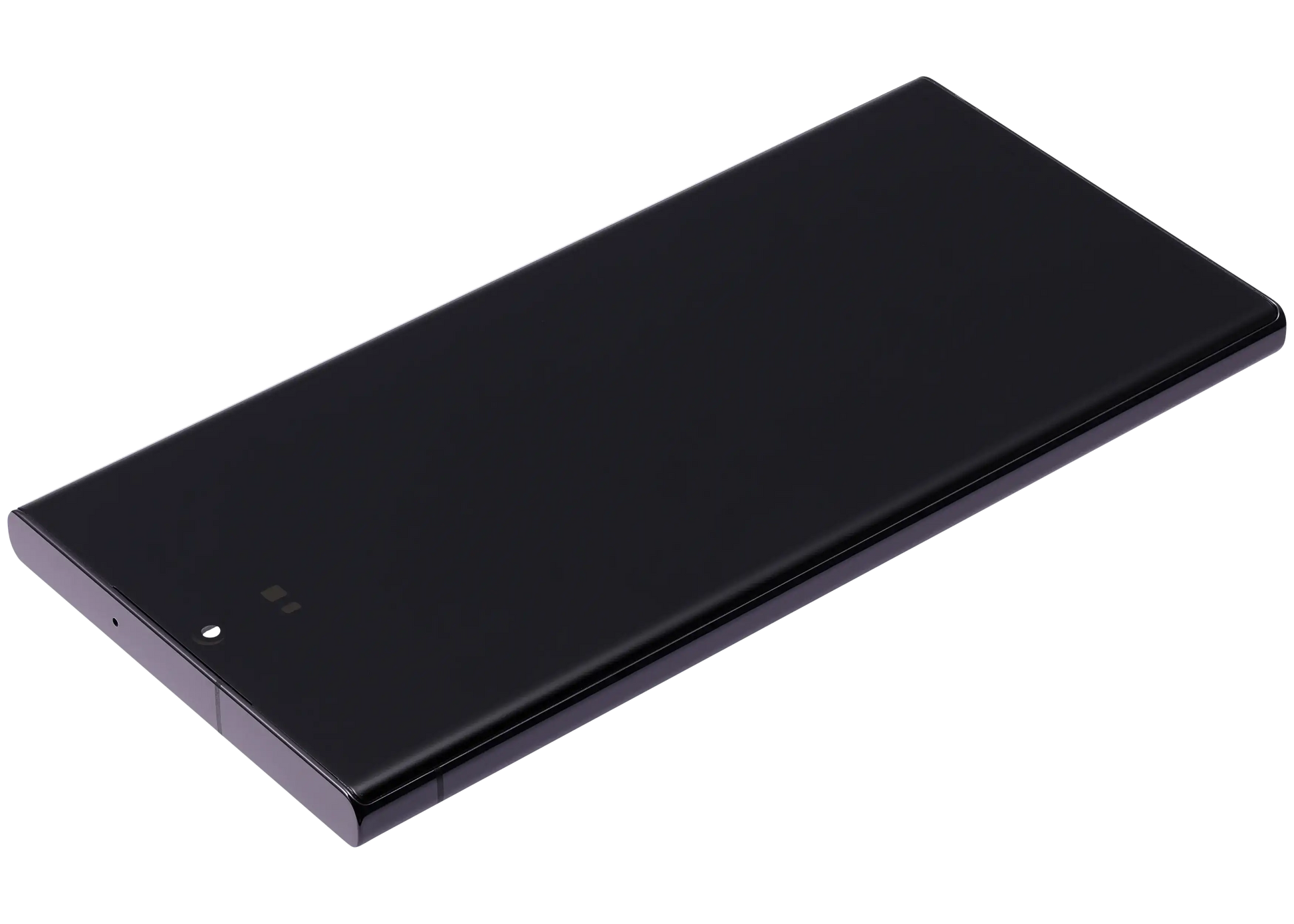

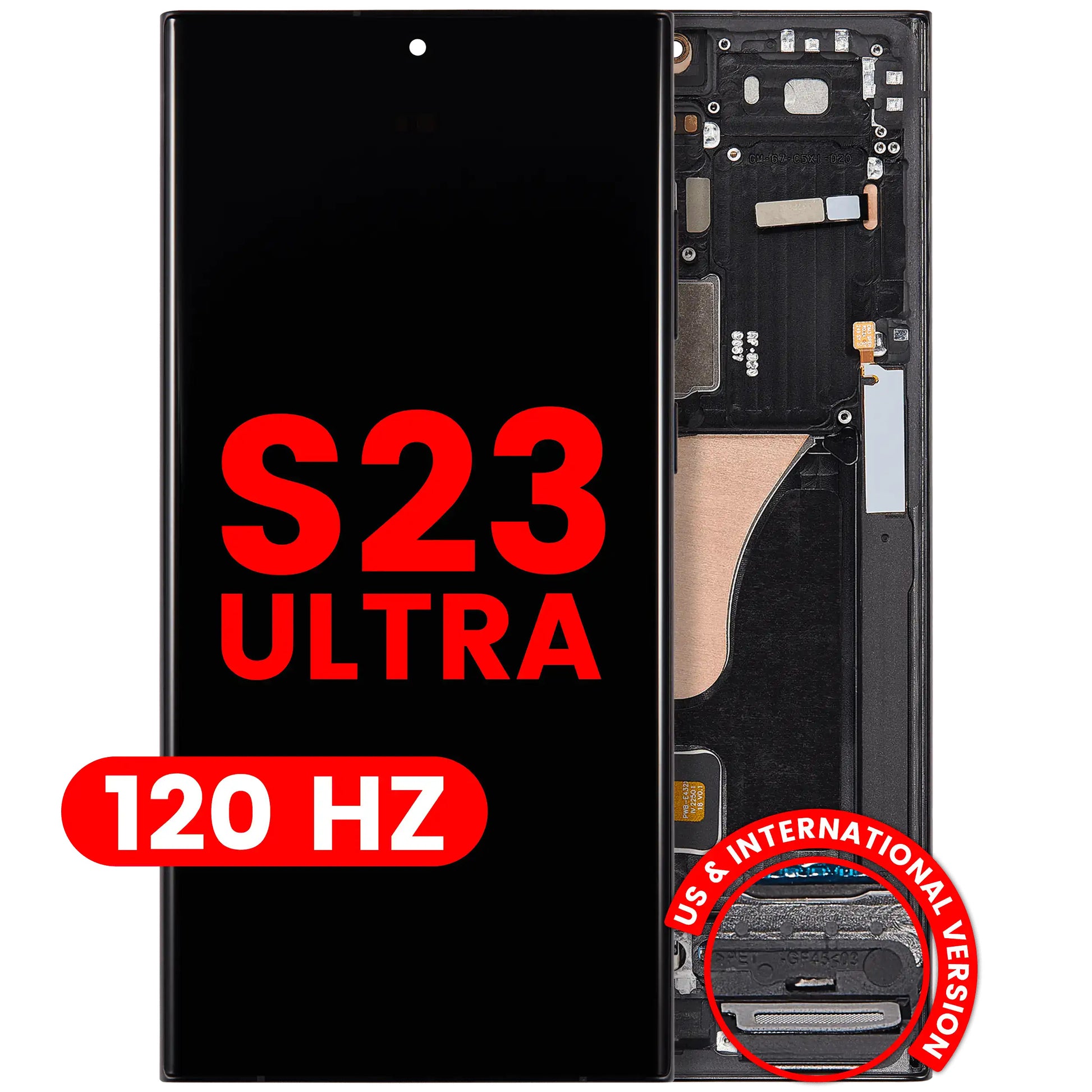

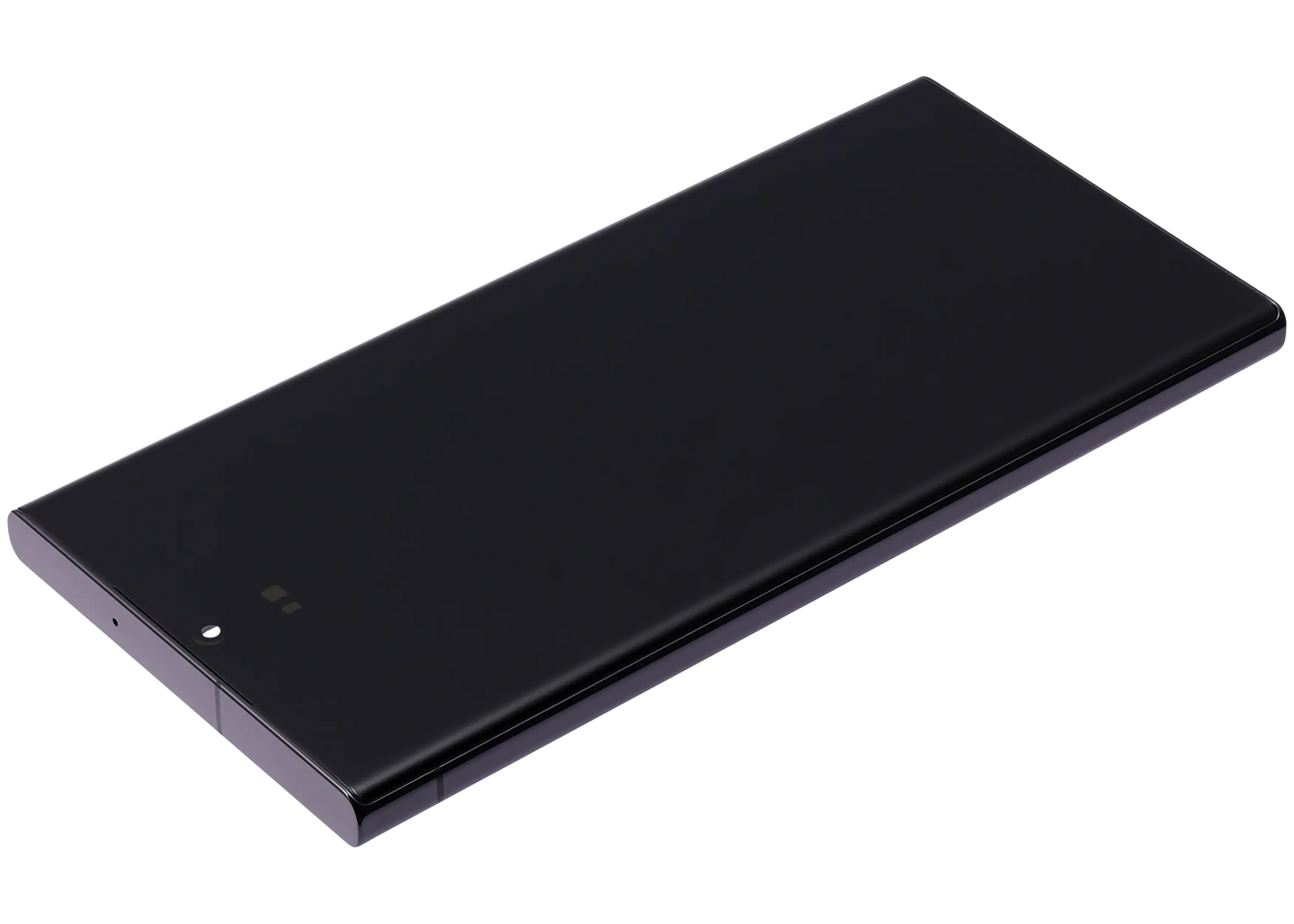

Display Assembly with Frame Replacement Compatible with Samsung Galaxy S23 Ultra

Bring your device's display back to life with our Display Assembly with Frame Replacement Compatible with Samsung Galaxy S23 Ultra. This Standard Tier OLED replacement restores touch sensitivity and brightness while offering a highly reliable, cost-effective alternative to OEM panels.

📊 Specifications & Features

• Quality Tier (Standard OLED): Features aftermarket LTPS OLED technology.
• Display Specs: 6.78-inch active display area, 450 PPI pixel density, and 60Hz/120Hz refresh rate support.
• Fingerprint Sensor: Supported and included for continued biometric authentication.

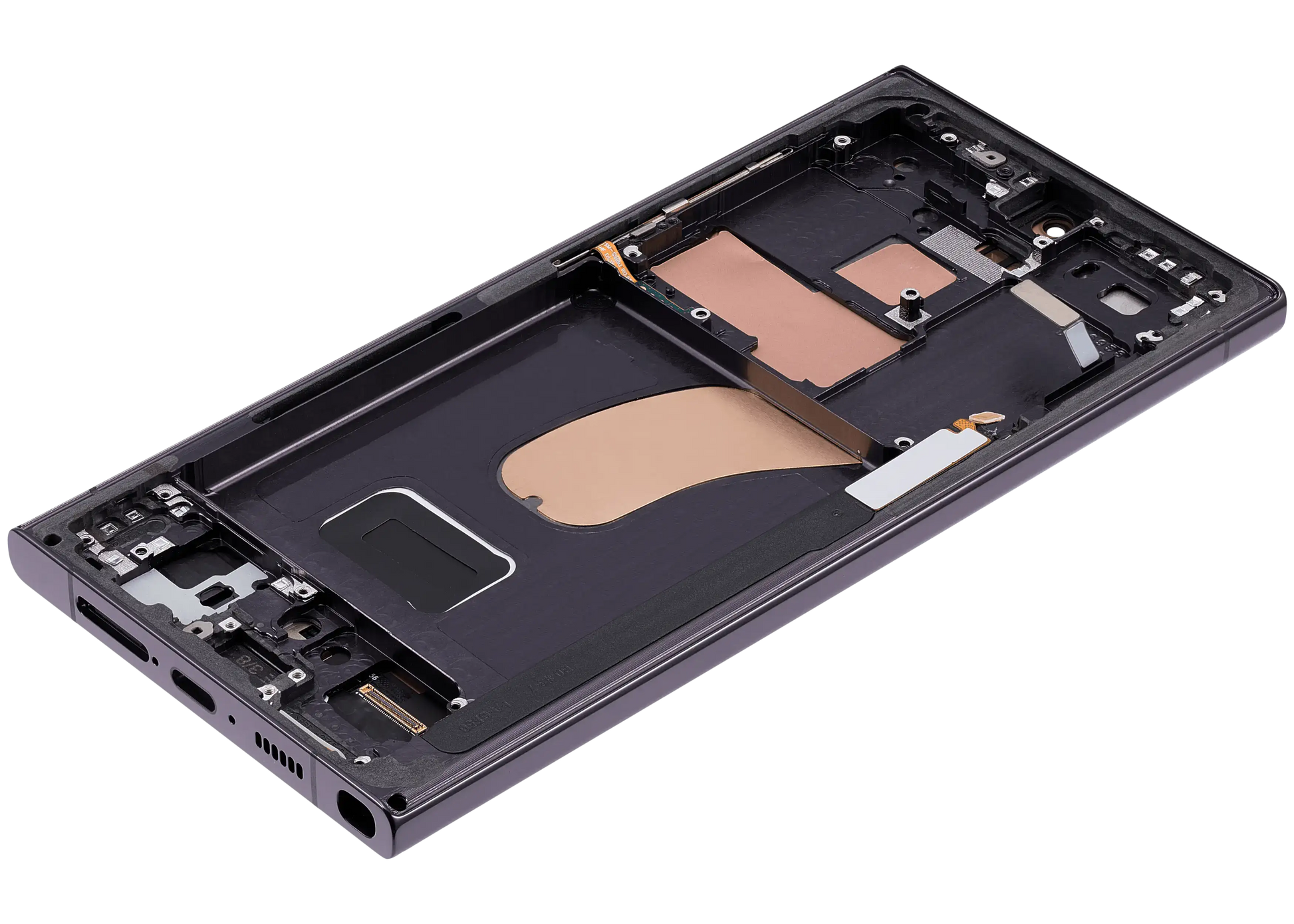

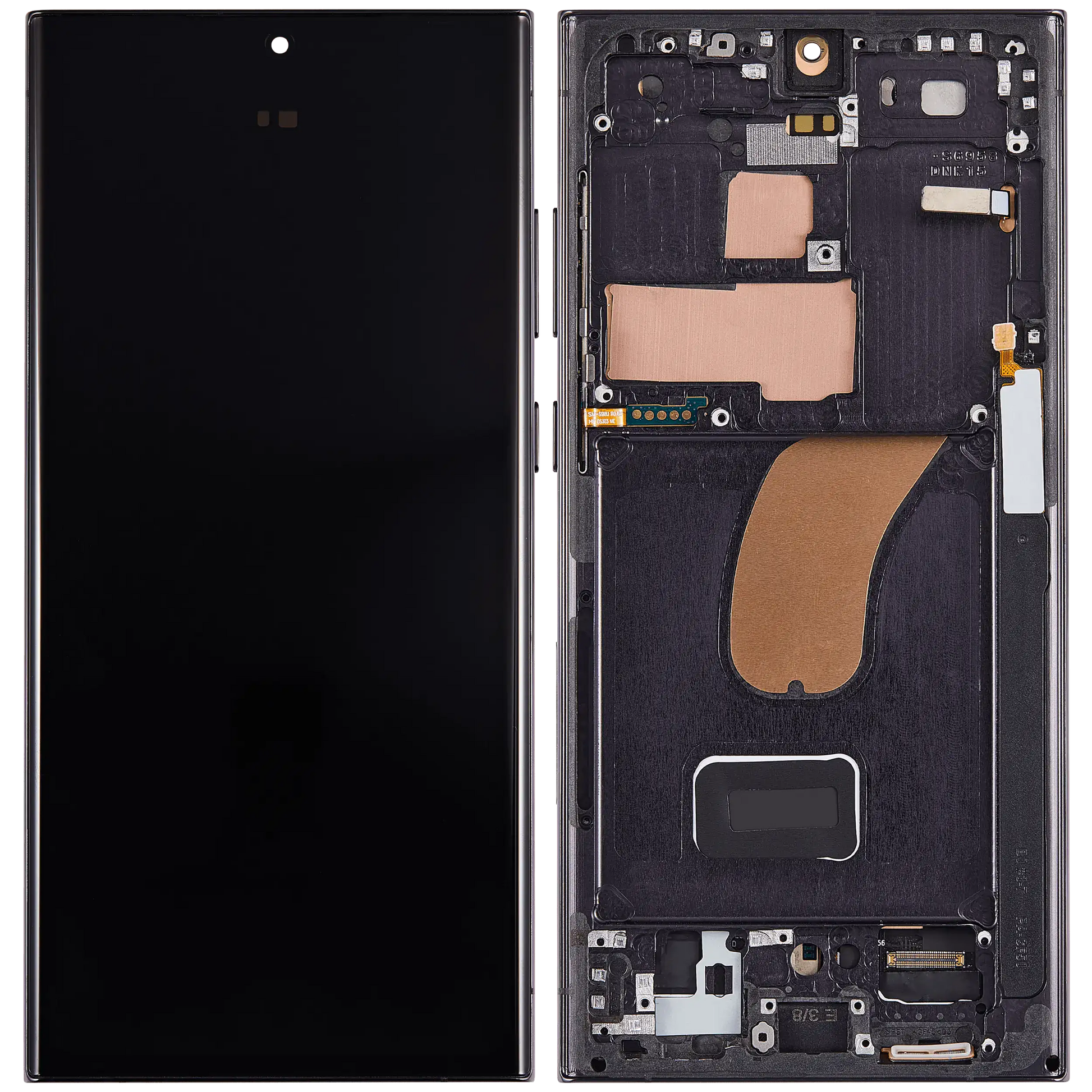

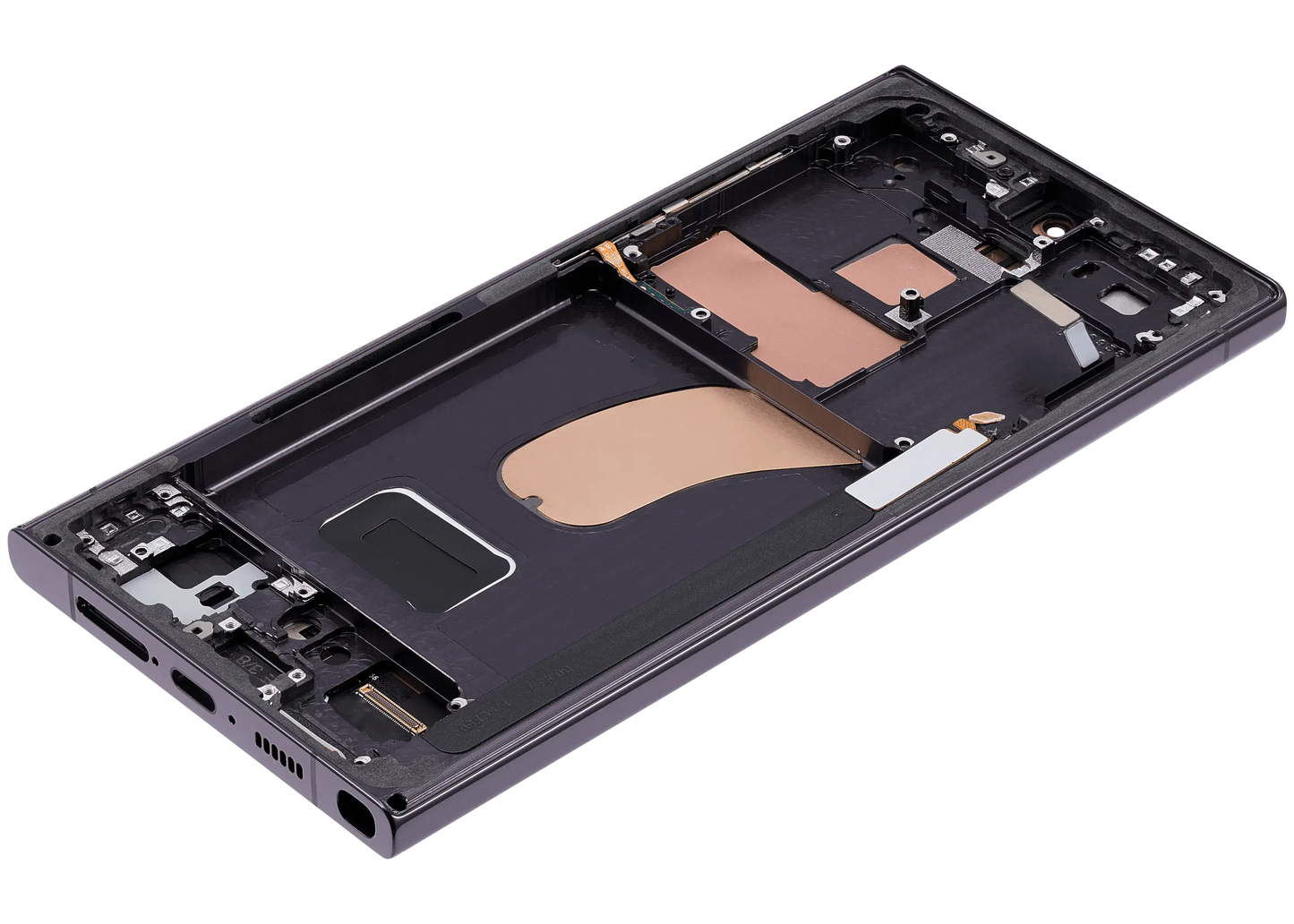

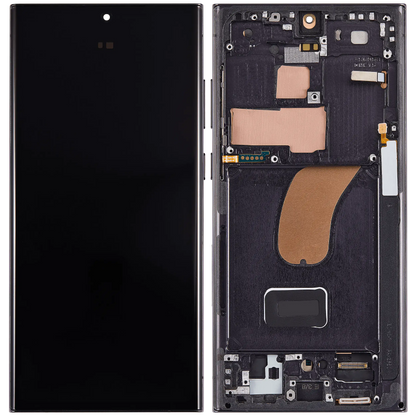

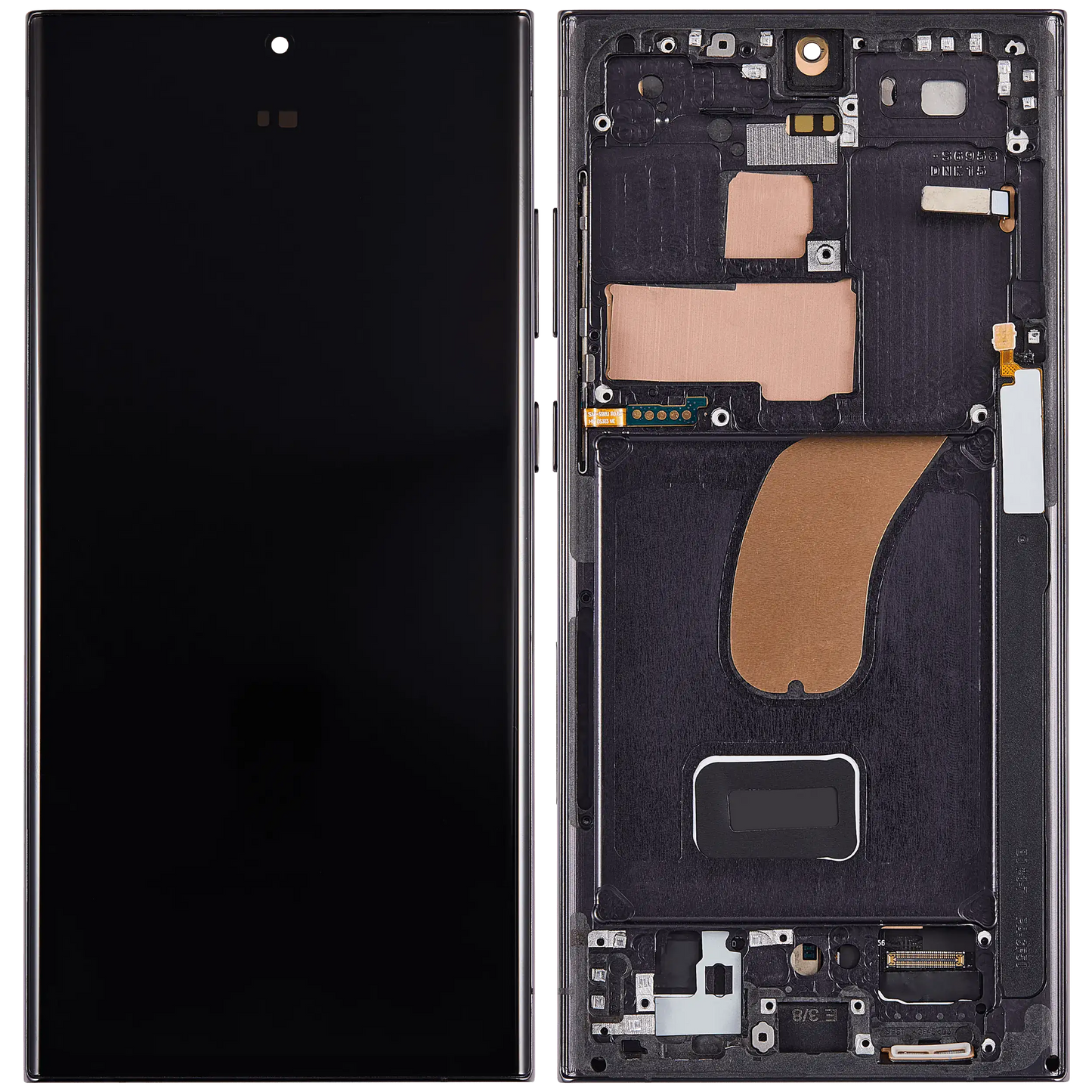

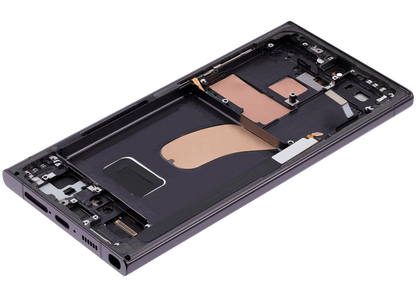

• Pre-Installed Frame: Includes the structural mid-frame to significantly reduce repair time and ensure a perfect glass seal.

⚙️ Configuration Settings (Sold Individually)

Variant: Frame Color

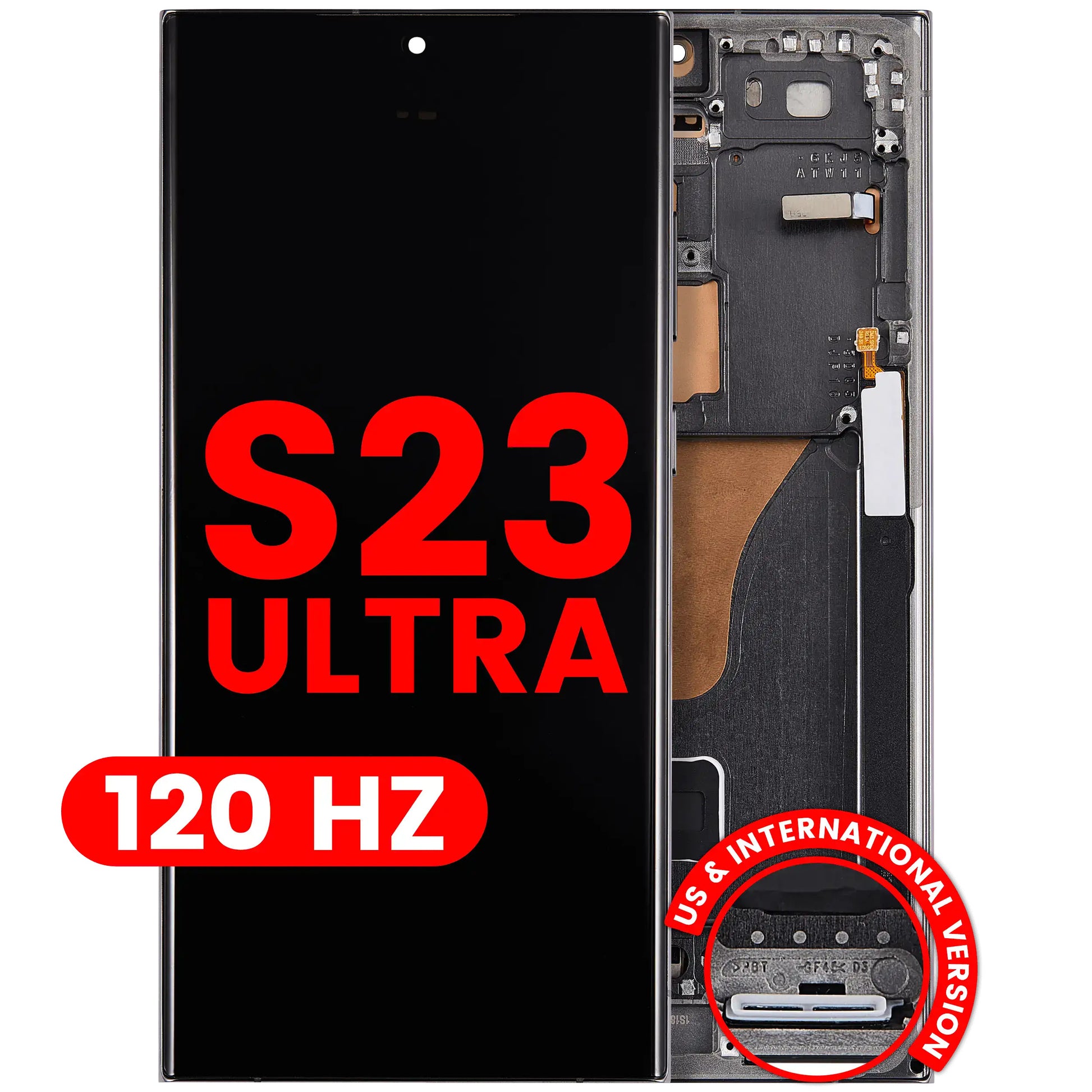

• ⚫ Phantom Black

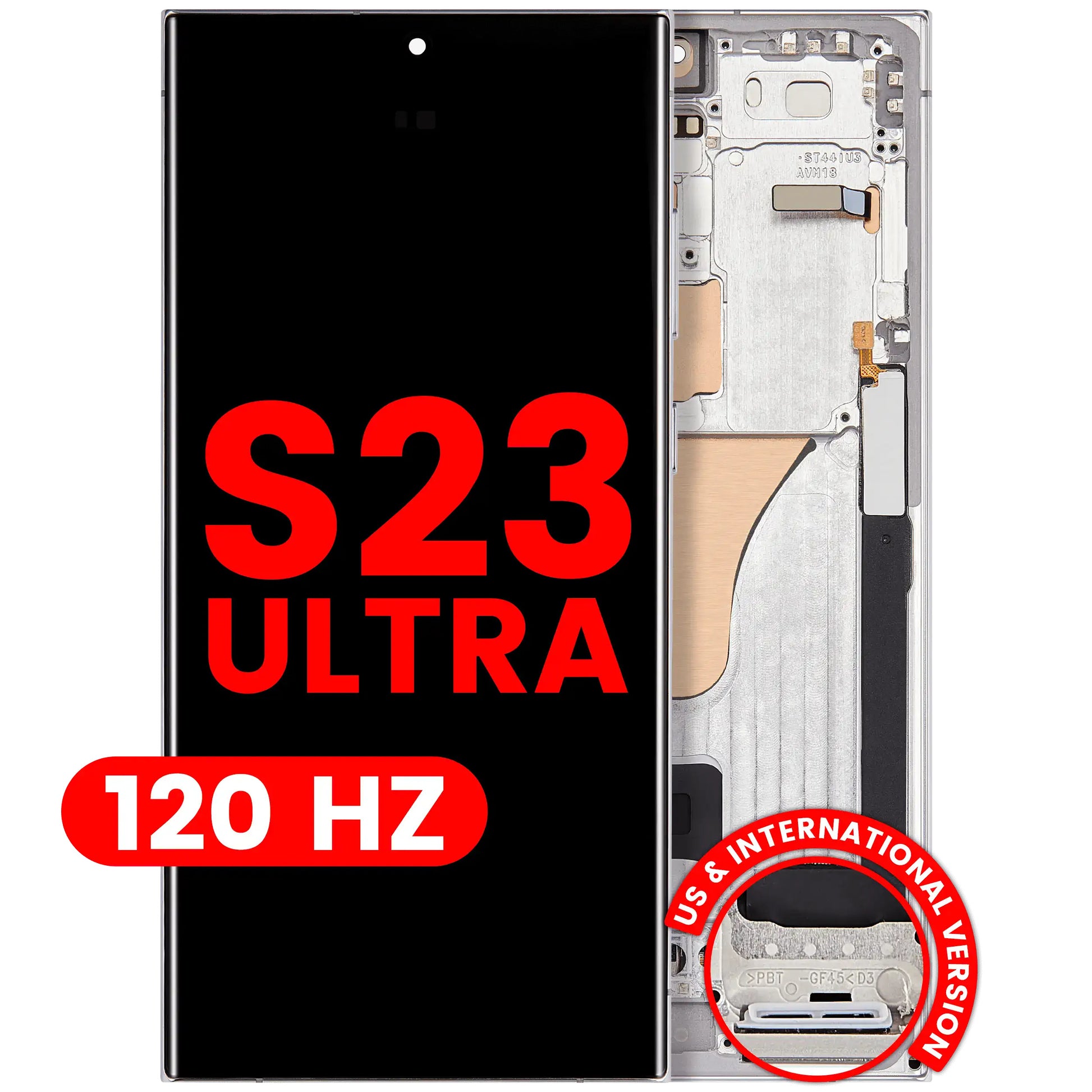

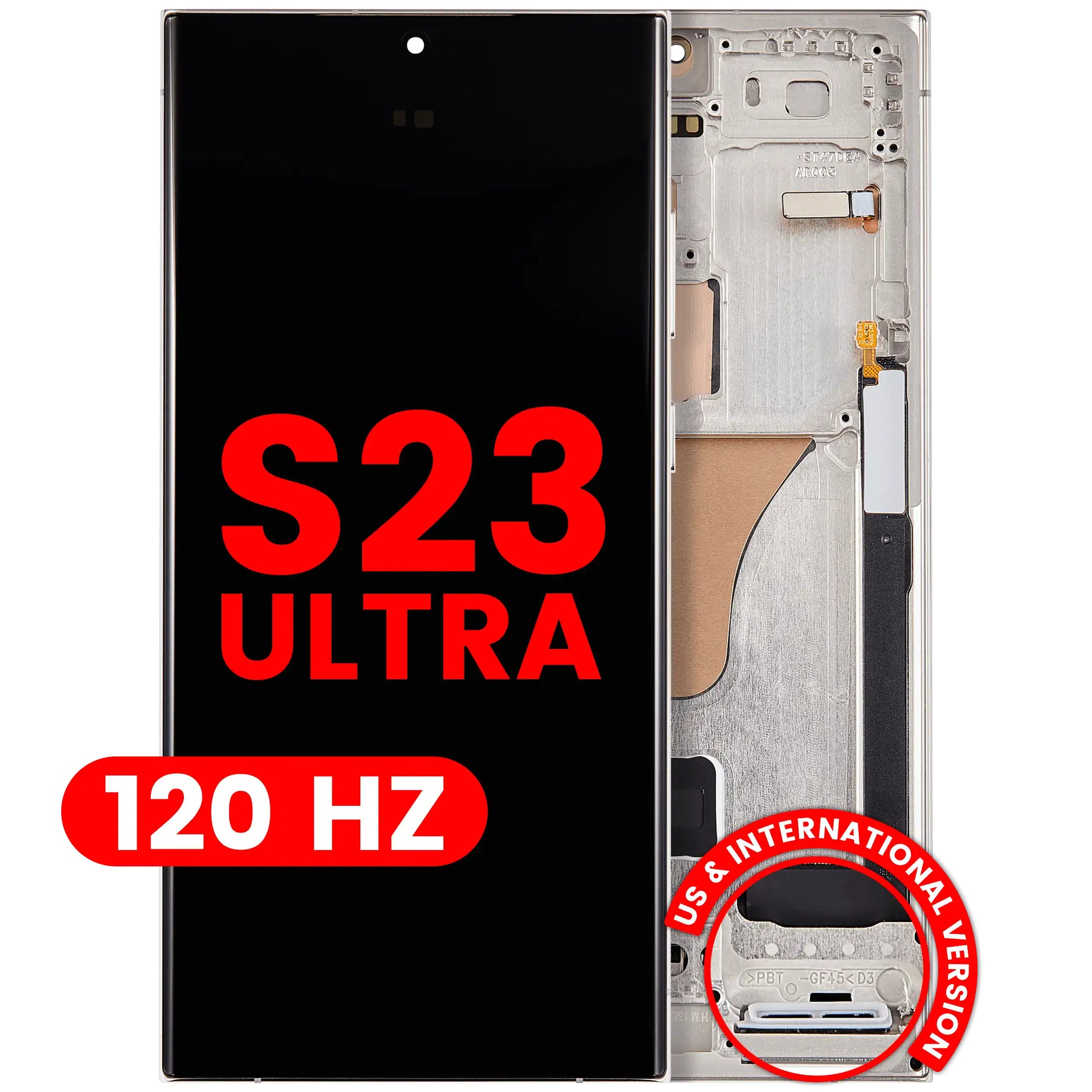

• ⚪ Cream
• 🟢 Green

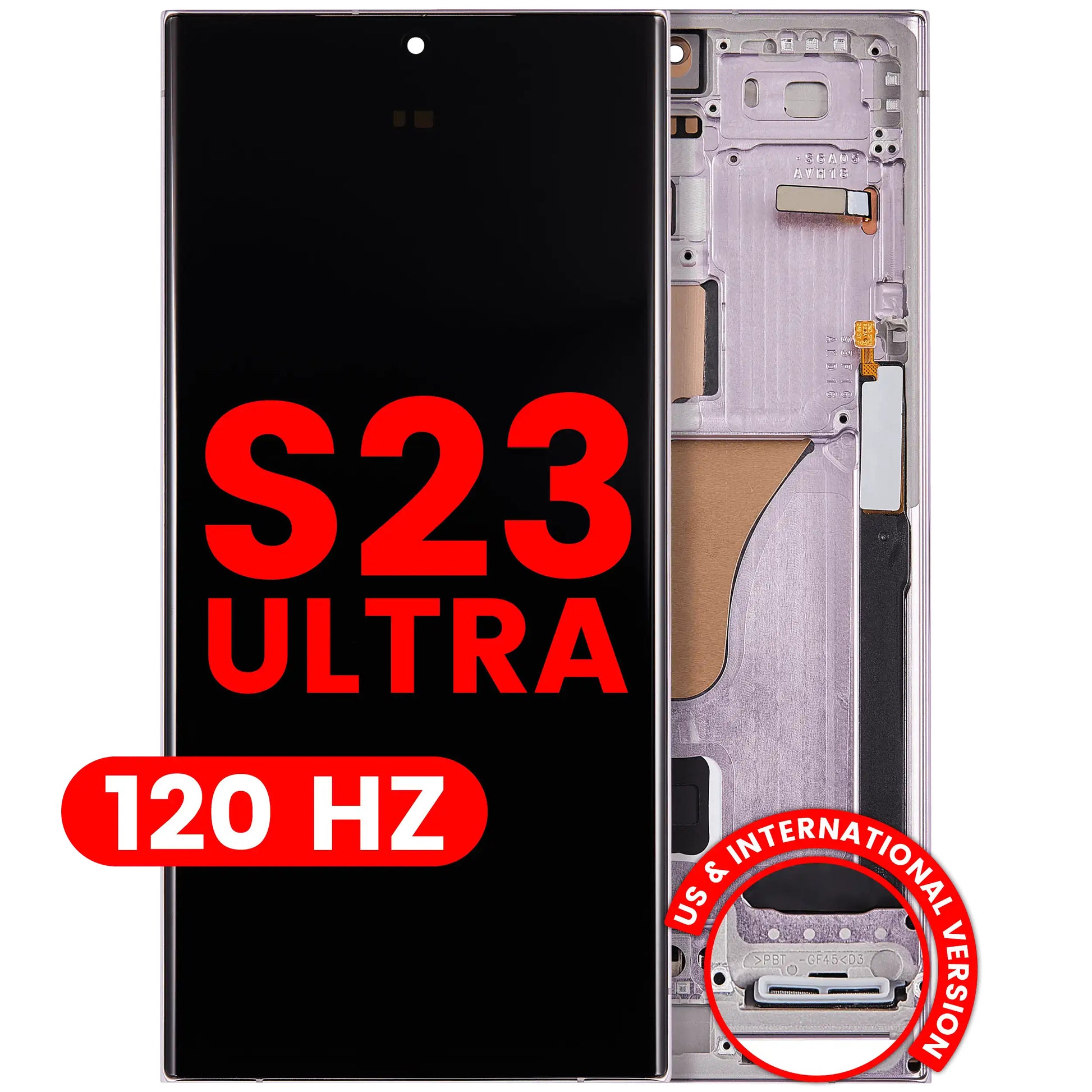

• 🟣 Lavender
• 🔵 Sky Blue
• 🔘 Graphite

⚖️ OEM vs. Standard Tier Quality Differences

Please note that as a standard aftermarket replacement, there are distinct physical and technical differences from the original factory panel to accommodate the lower price point:

• Bezel Width: The black borders (bezels) are approximately 1/3 thicker than the original OEM screen.
• Screen Size & Corners: Features slightly more rounded corners and a marginally smaller viewable area (6.78" compared to the factory 6.8").
• Backplane Tech: Utilizes an LTPS backplane instead of the factory LTPO, which may result in minor differences in variable refresh rate power efficiency.

⚠️ Technical Notice & Handling

⚠️ Component Transfer Risk: Because this display includes the frame, you must completely gut your original device. You will need to carefully transfer your motherboard, charge port board, vibration motor, battery, and other components into this new frame.

⚠️ Professional Installation Highly Recommended: This is a highly complex physical procedure. Safe removal of the original battery and glued internal components requires specialized pry tools, heating equipment (heat gun/mat), and high-concentration isopropyl alcohol to dissolve factory adhesives. We strongly recommend a trained technician perform this repair to prevent battery puncture (thermal runaway), permanent motherboard damage, or alcohol damaging special sensors.

📦 Package Information

• Contents: (1) Display Assembly with Frame Replacement Compatible with Samsung Galaxy S23 Ultra.
• Packaging: Moisture-sealed in a static-shielded ESD protective packet.
