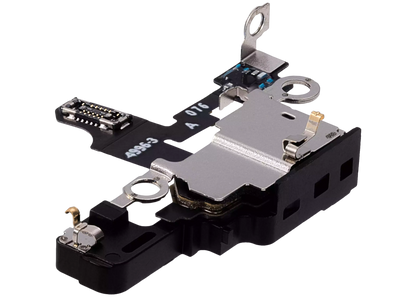

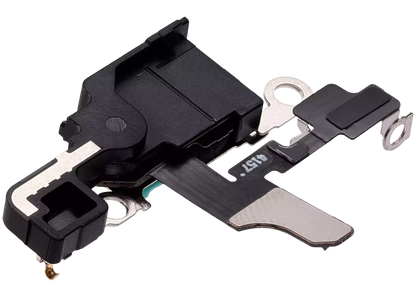

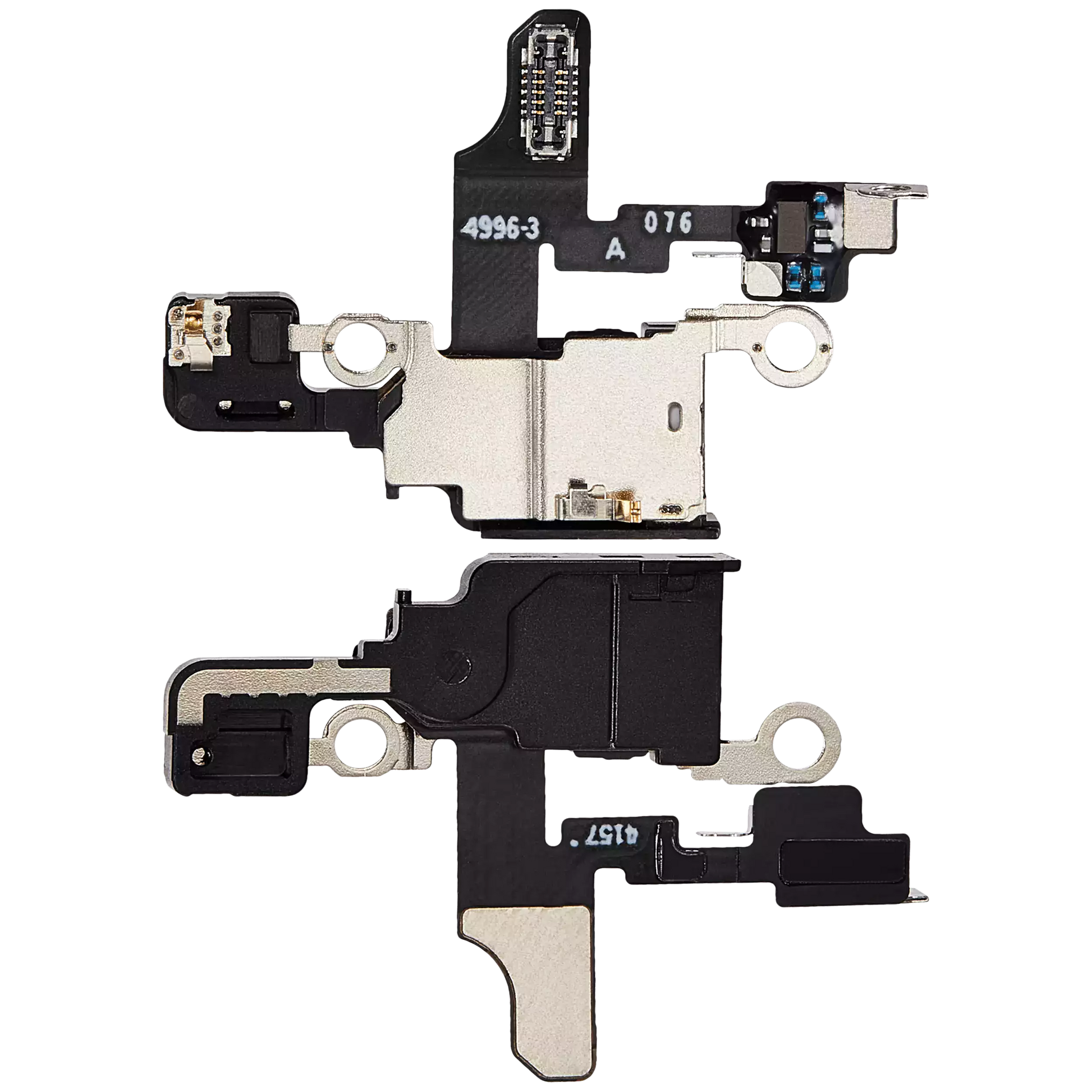

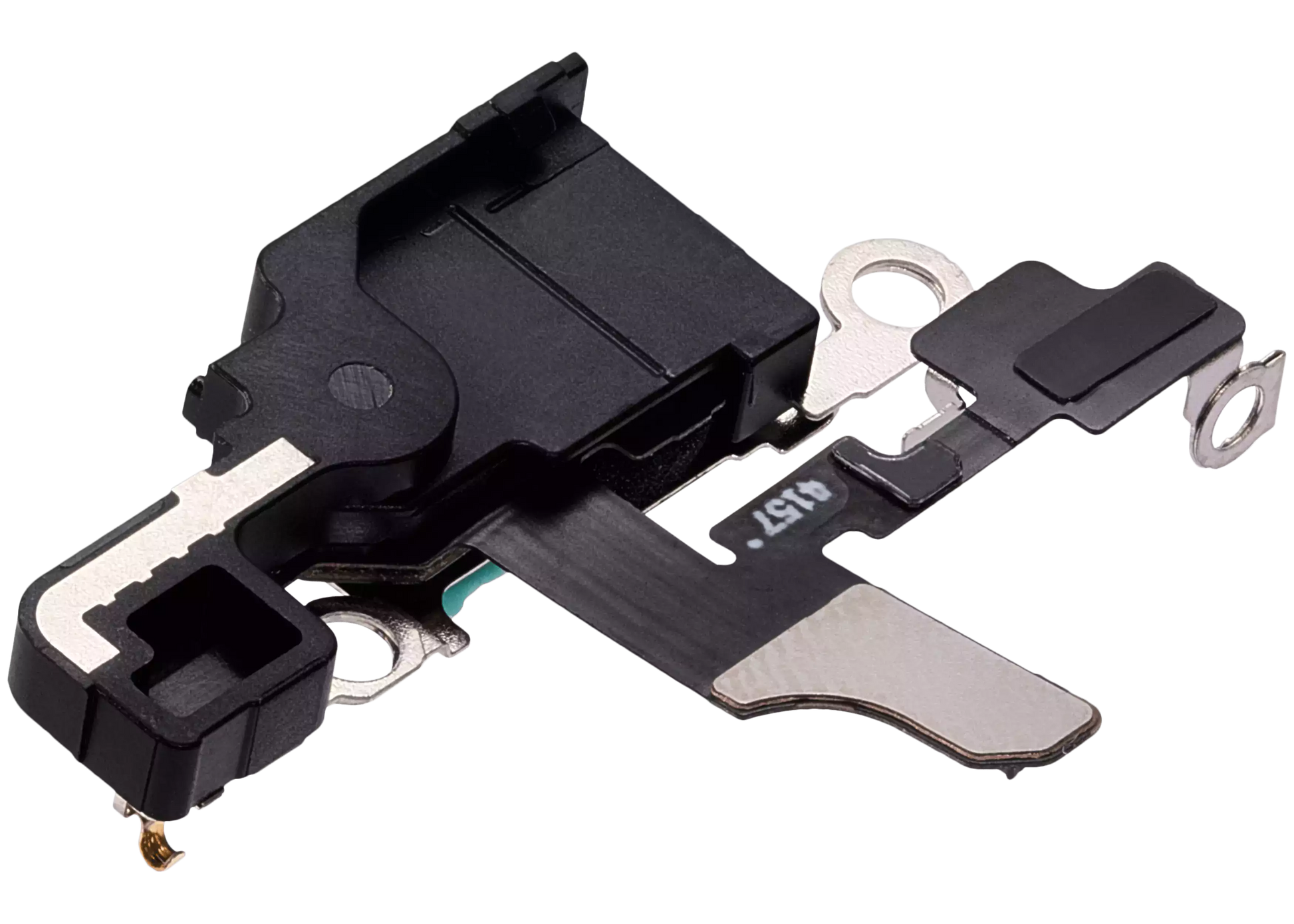

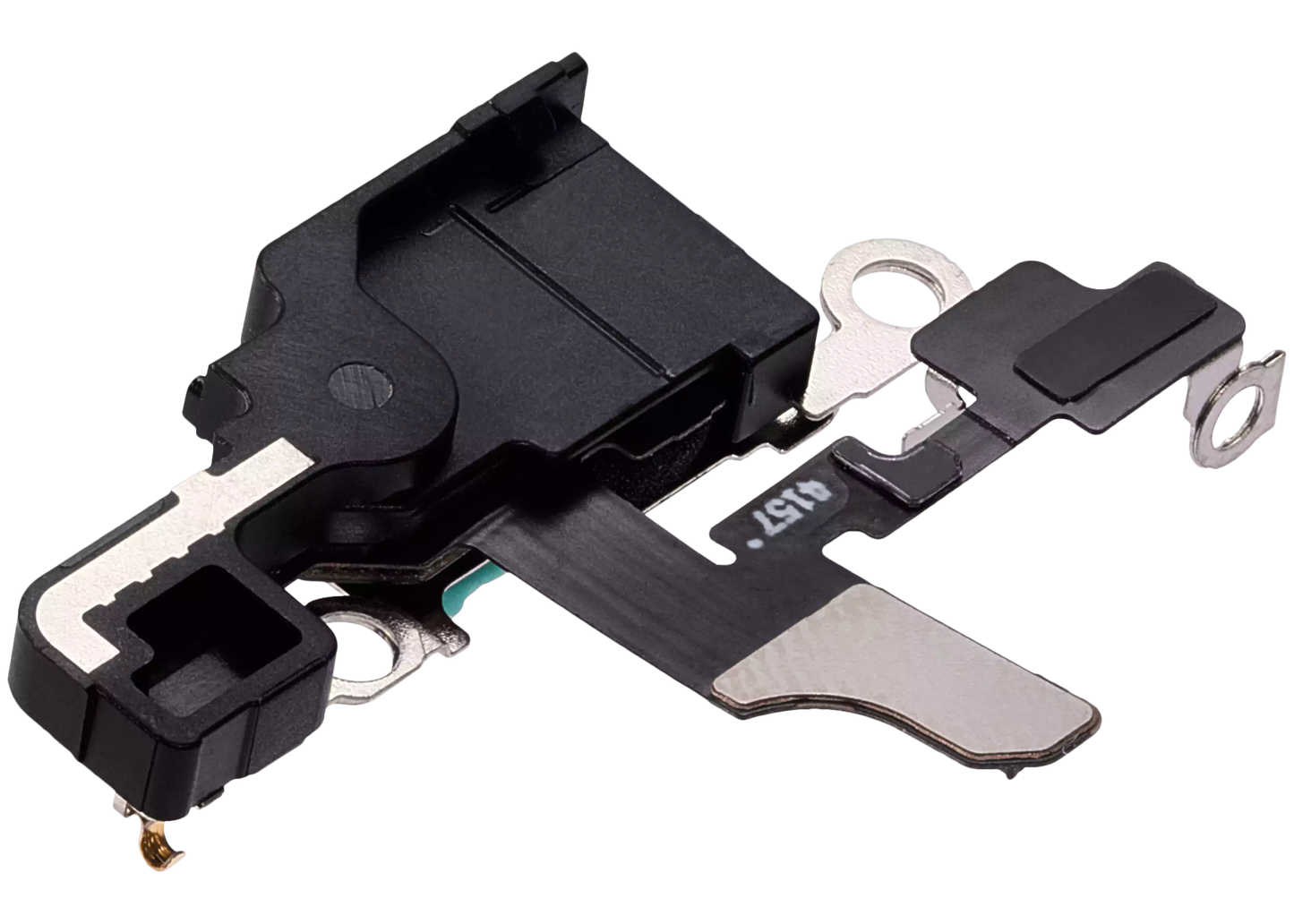

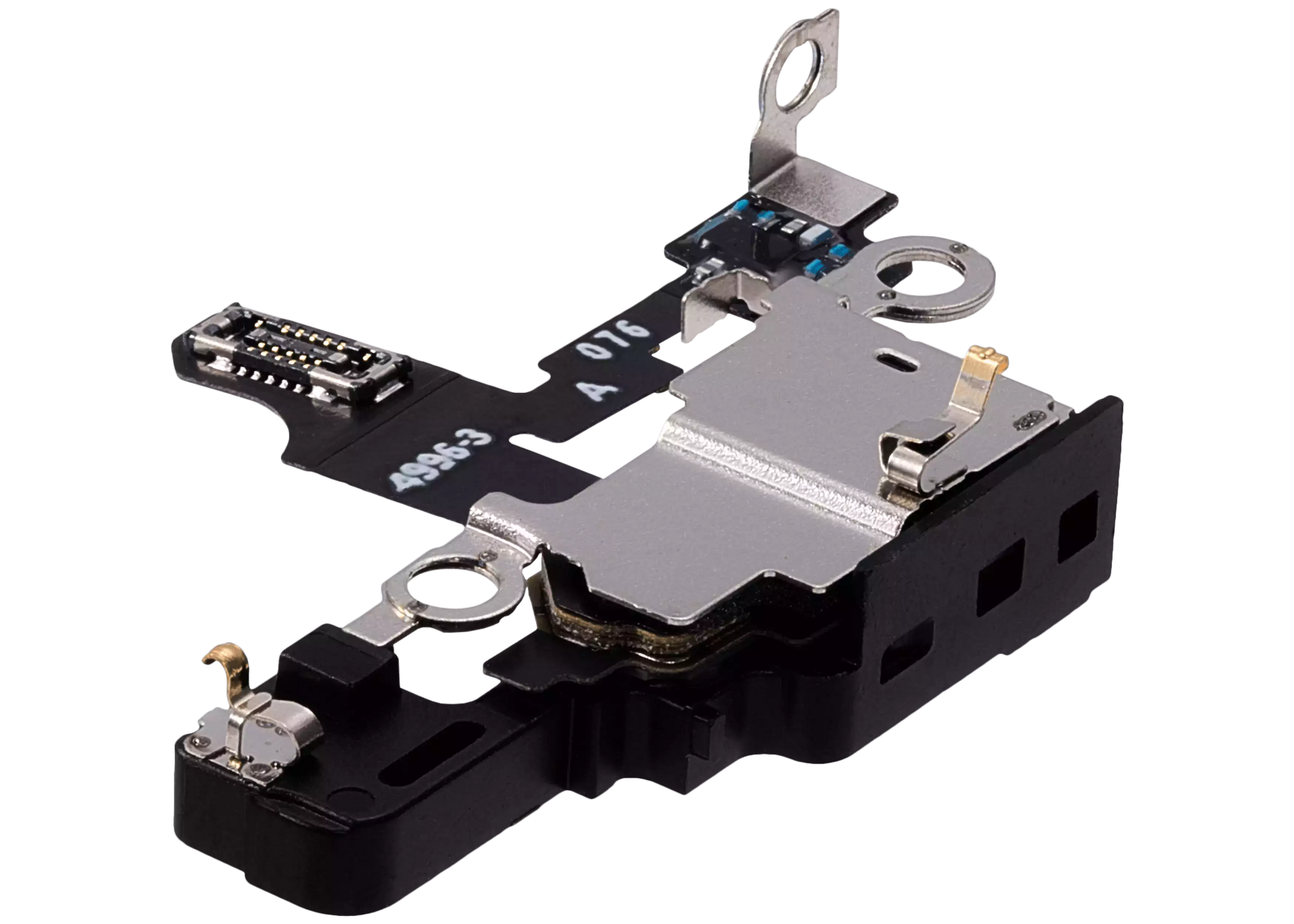

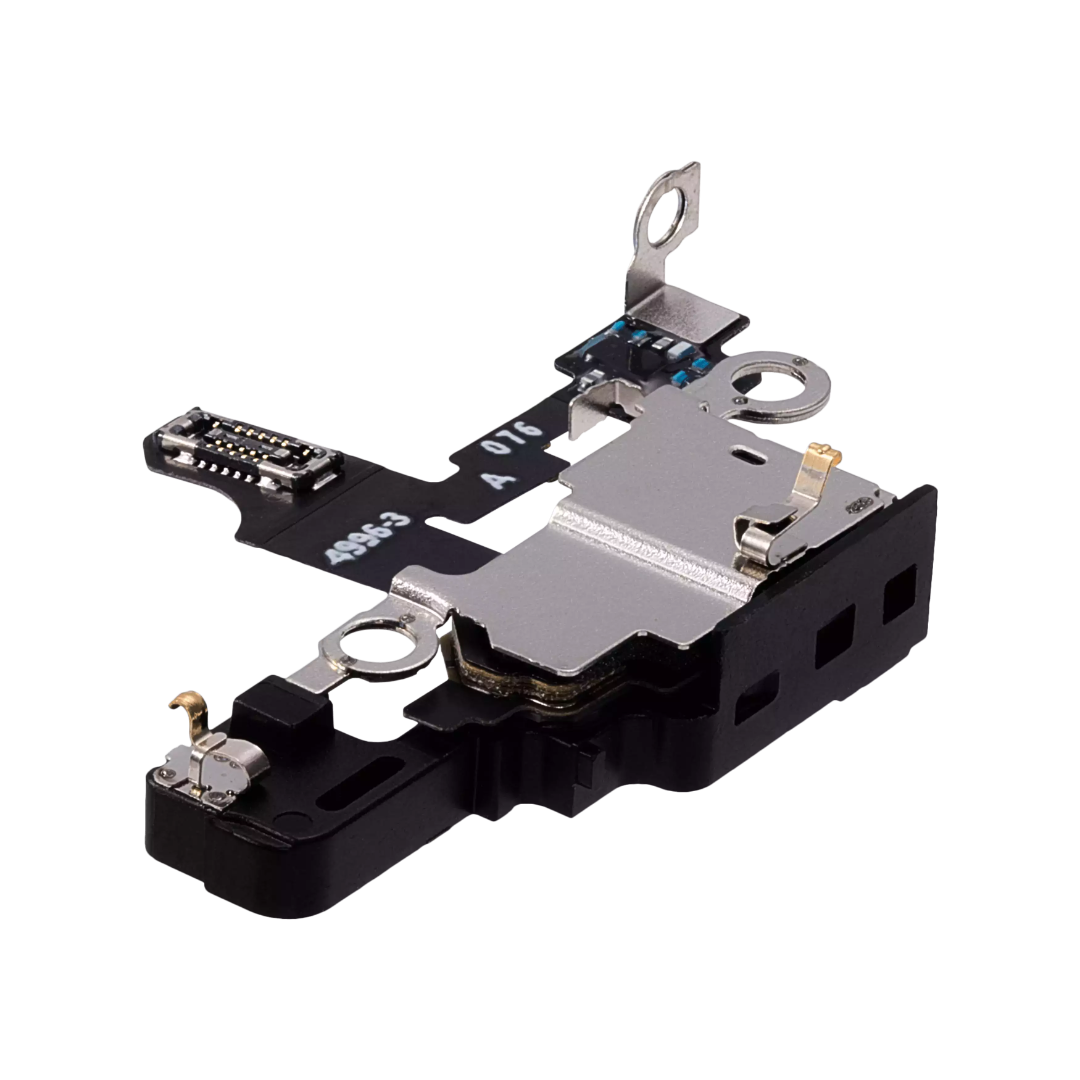

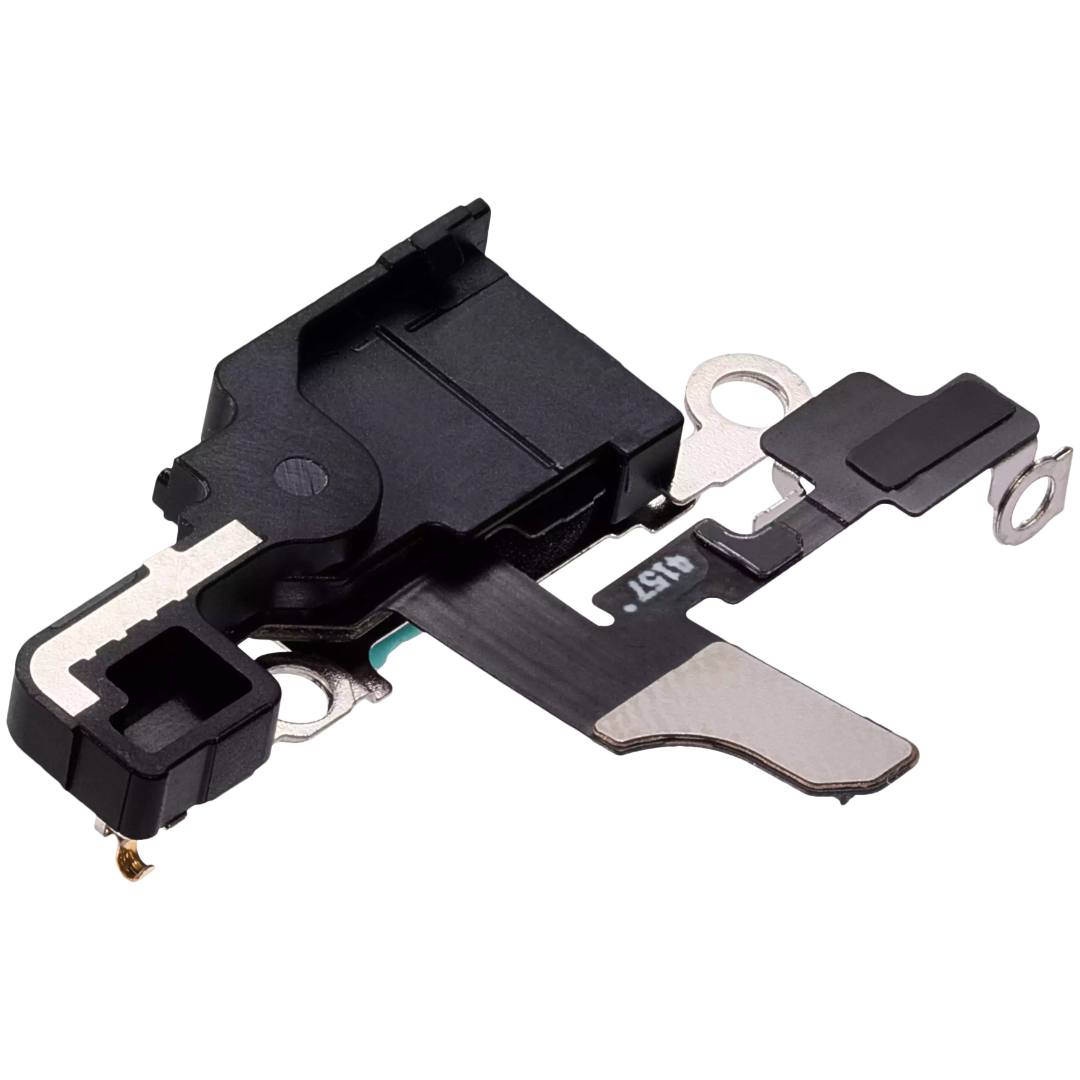

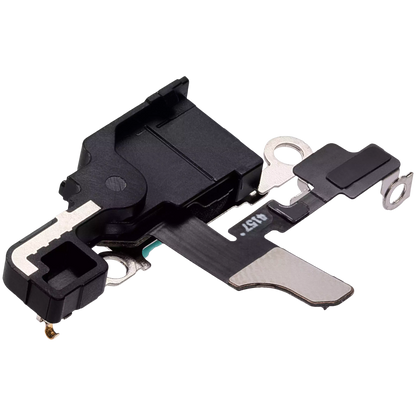

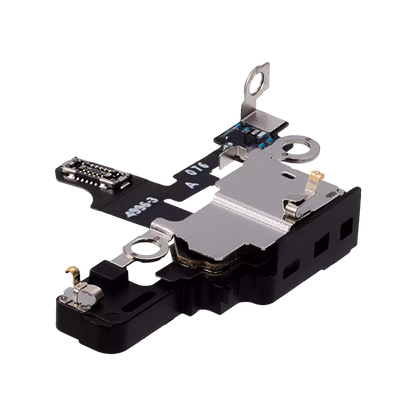

Are callers complaining of muffled audio, or is your device stuck in an endless Apple logo boot loop? Restore your device's acoustic clarity and resolve critical I2C sensor failures with this Standard Bottom Microphone & Barometric Sensor. Designed specifically for the Apple iPhone 16 Pro, this exact-spec replacement resolves complex board-level communication halts caused by liquid or impact damage.

Quality Tier: Standard (Factory-Specification)
This Standard-tier replacement matches factory dimensional tolerances and sensor calibration. It is engineered to communicate seamlessly with the logic board, instantly clearing software panics caused by hardware timeouts.

Standout Engineering Features

• Solves I2C Boot Loops: The iOS kernel continuously pings the barometric sensor during startup and operation. If liquid damage shorts this sensor, the device will kernel panic and reboot exactly every three minutes or hang indefinitely on the Apple logo. Replacing this module clears the hardware bottleneck.
• Primary Acoustic Restoration: This module houses the primary microphone used for standard non-speakerphone voice calls and voice memos, ensuring crisp, interference-free audio recording.

Important Installation Note (Delicate Handling & Acoustic Prep)
While this is a separate component from the main charging port flex, it interfaces directly within the same tightly packed lower-chassis ecosystem. You must use extreme care when seating the micro-connector; forcing the alignment can crush the pins on the receiving flex cable. Always perform a "hardware isolation" test by temporarily plugging this sensor into the board before fully adhering it to the chassis.

Technician Tip: Before opening the device for a microphone repair, ensure the external mesh grills at the bottom of the phone are thoroughly cleaned with a soft-bristled brush and isopropyl alcohol. Built-up lint and debris can physically block the acoustic pathway. If cleaning the exterior grills does not restore crystal clear clarity, proceed with this hardware replacement.

Specifications & Compatibility

• Condition: Brand New
• Manufacturer Tier: Standard (Aftermarket Factory-Specification)
• Compatibility: Engineered specifically for the Apple iPhone 16 Pro (6.3-inch).
• Not compatible with: Apple iPhone 16, 16 Plus, or 16 Pro Max models.

Package Contents

• (1) Standard Bottom Microphone & Barometric Sensor
• Note: Charging port flex cables, screen adhesive, and specialized cleaning tools are sold separately.
