Restore premium power delivery, microphone capture, and data sync with the Premium Internal Charging Port Dock Component Replacement Kit for iPhone 11. Upgraded structural alloys and strict tolerances ensure high-performance workshop results.
📊 Specifications & Features
Fixes: Resolves issues with charging, data sync, microphone audio, cellular signal ("Searching..."), vibration, and/or loudspeaker functionality caused by bent pins, liquid corrosion, or physical damage.
🔒 Boot-Loop Resolution: Directly corrects the 3-minute watchdog thermal panic restart loops caused by damaged lower microphone data lines or failed dock sensor pings on the I2C bus.
Compatibility: Standard iPhone 11 base architecture layout (Model Numbers: A2111, A2221, A2223).
⚙️ Configuration Settings (Sold Individually)
Variant 1: Technical Build

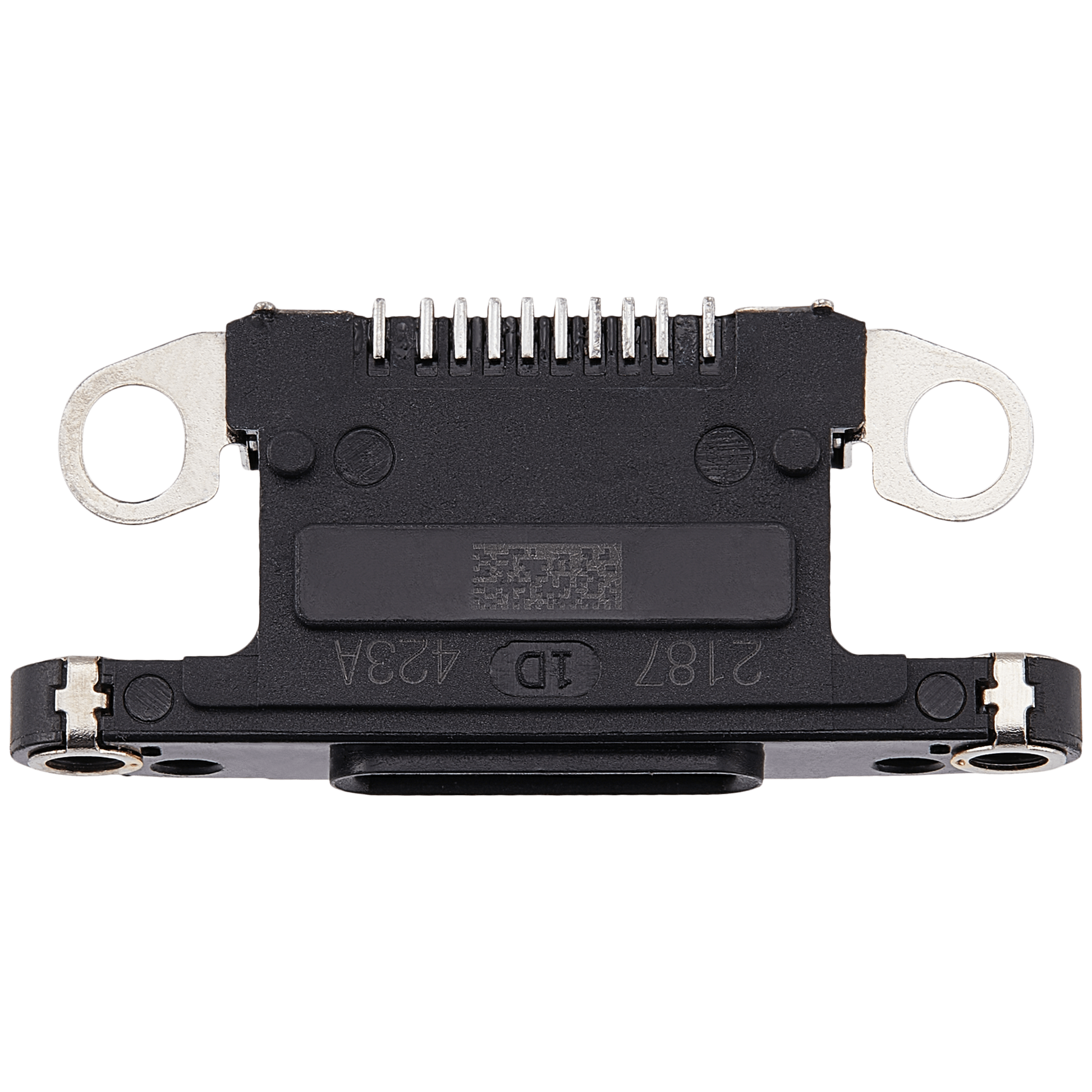

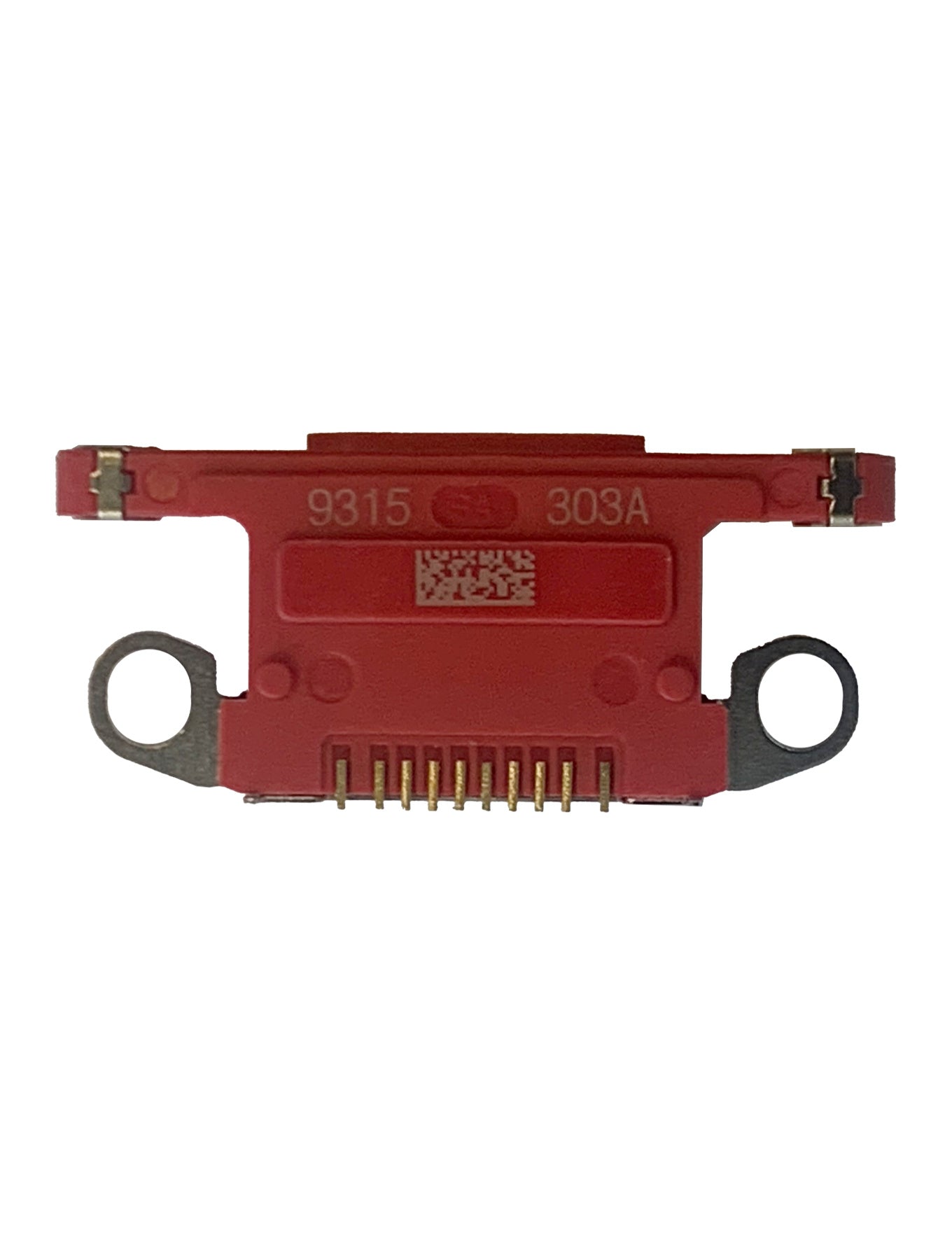

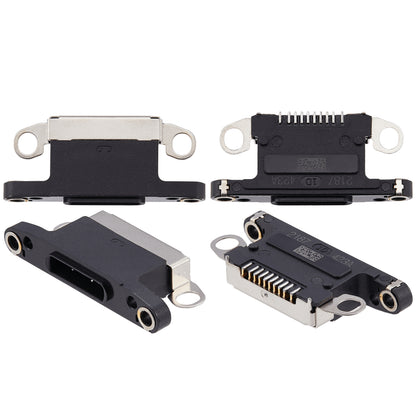

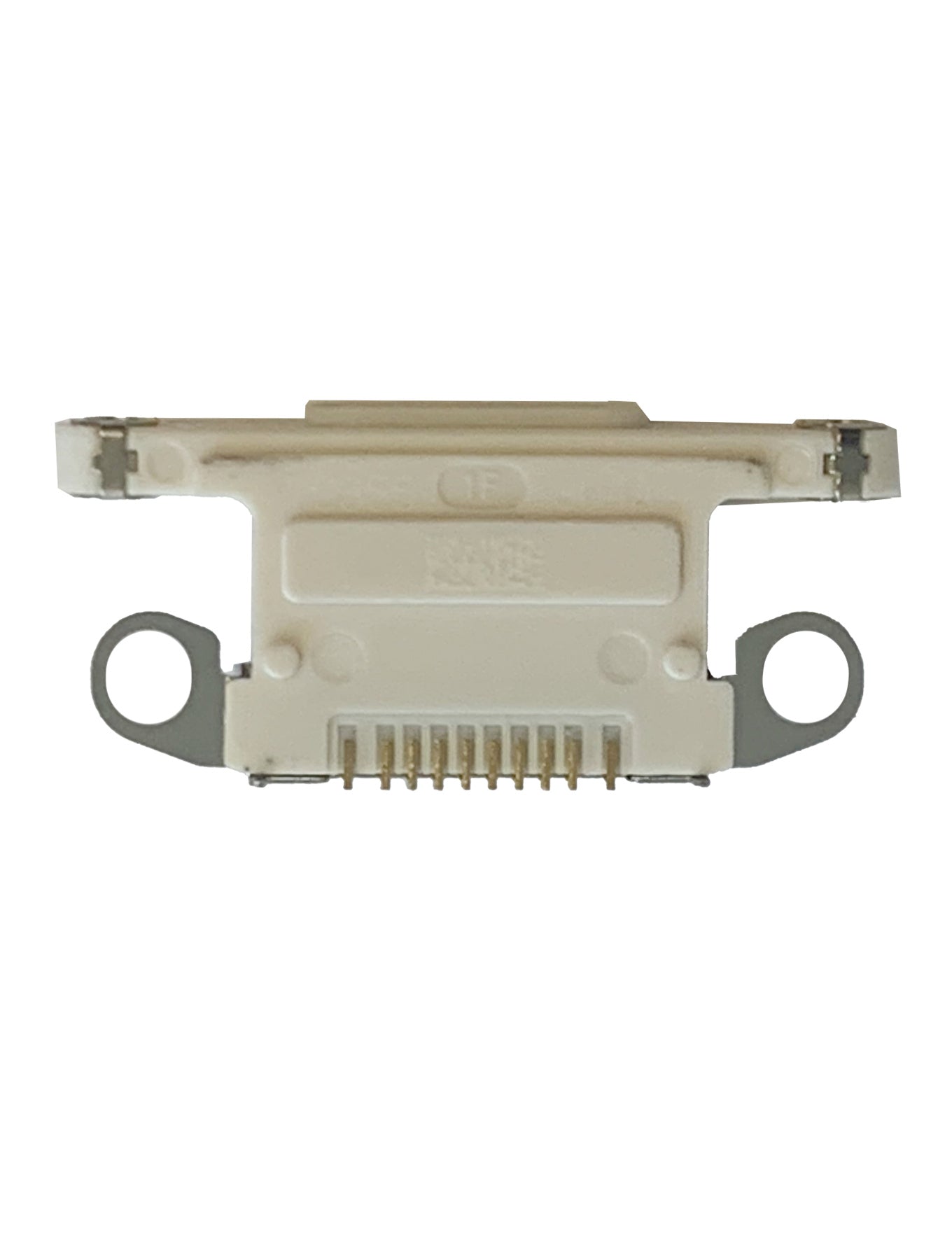

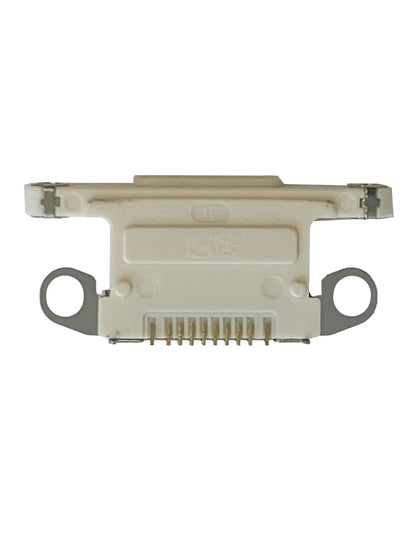

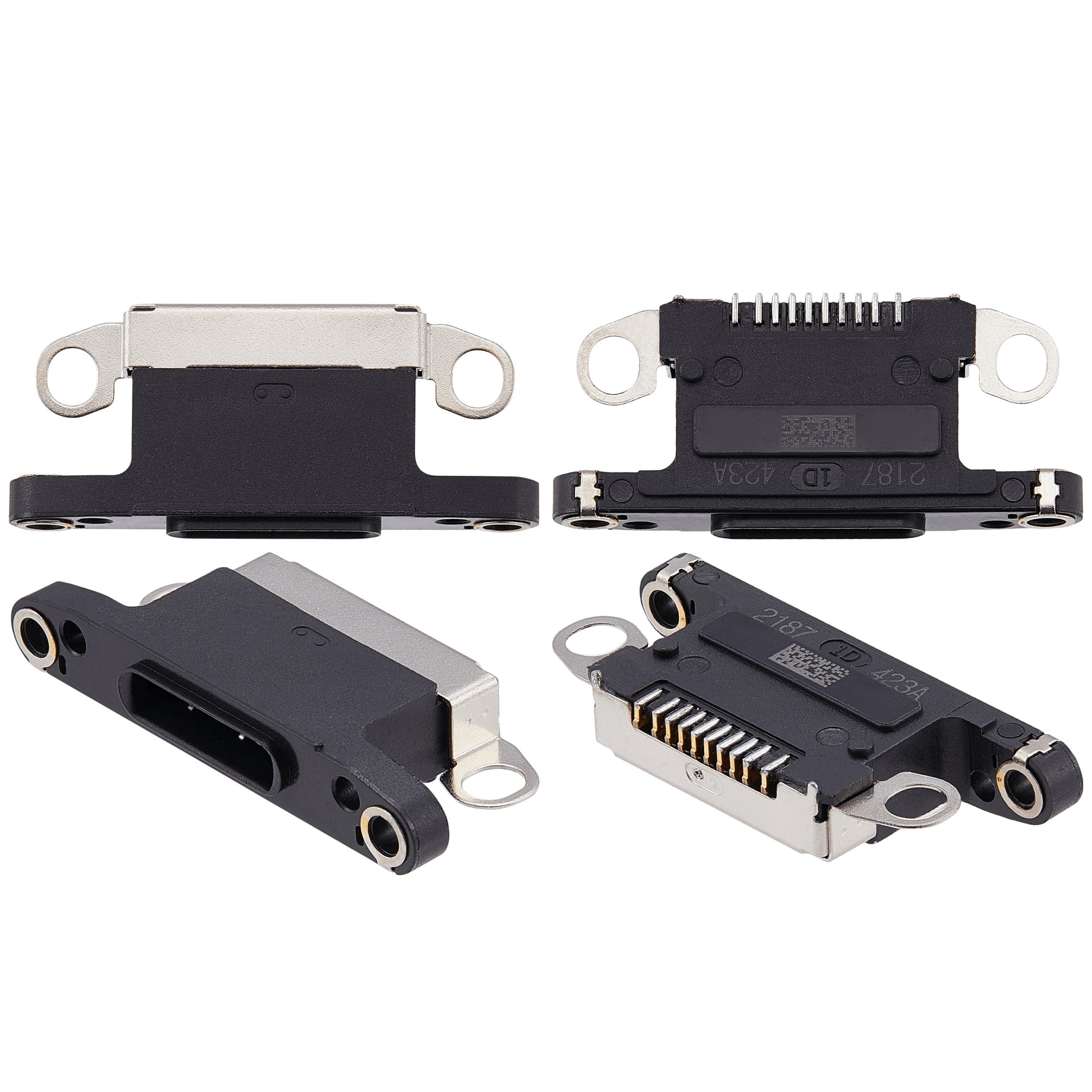

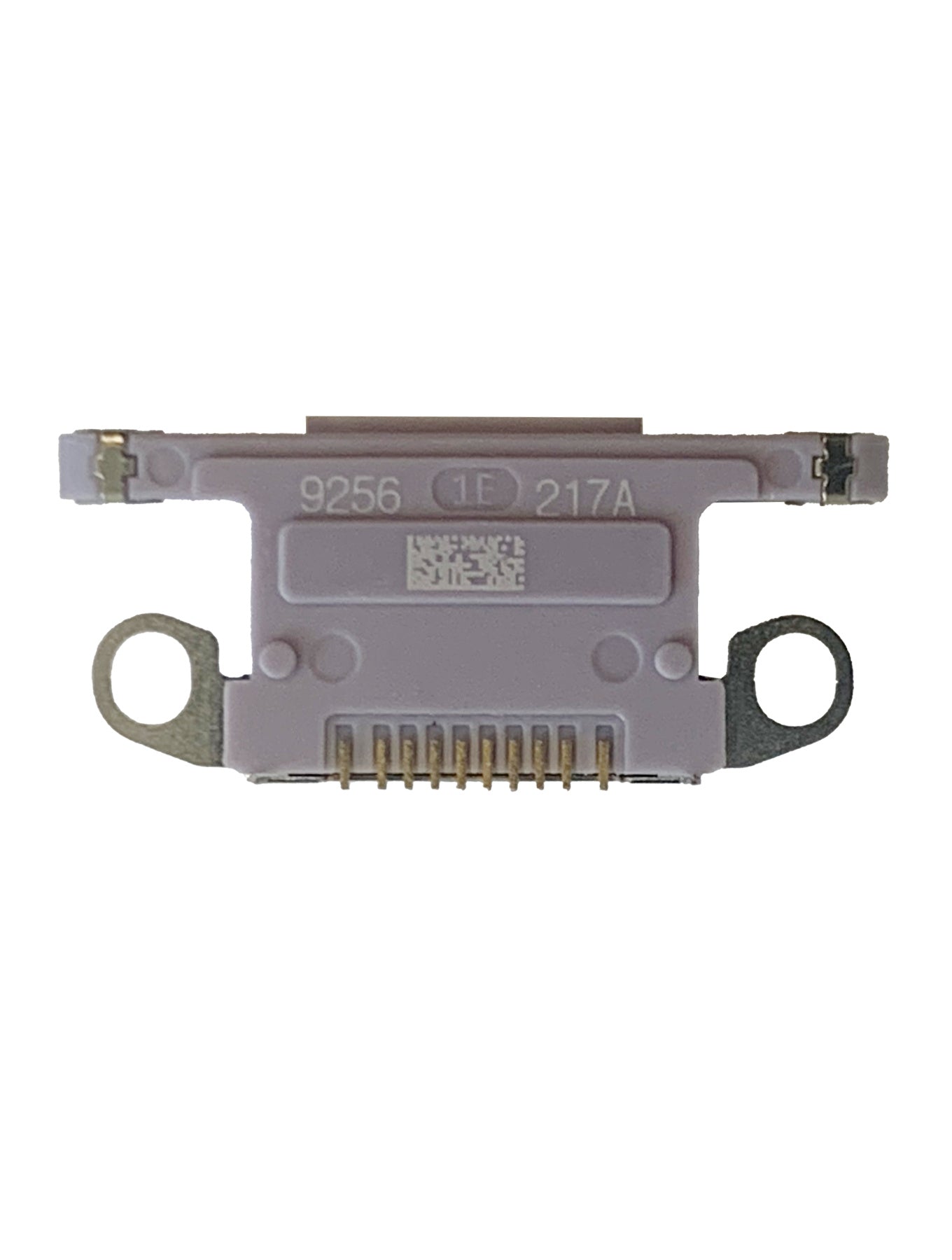

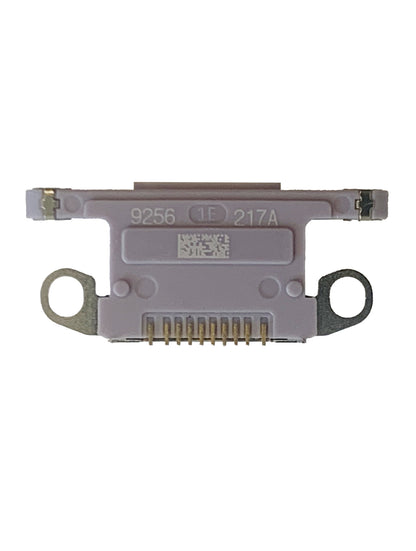

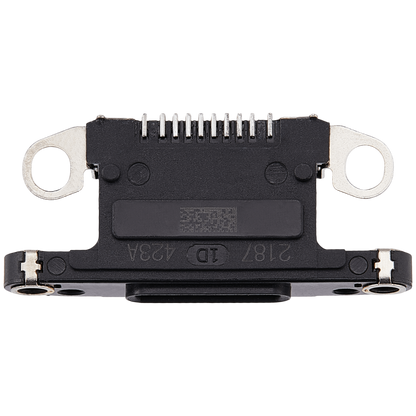

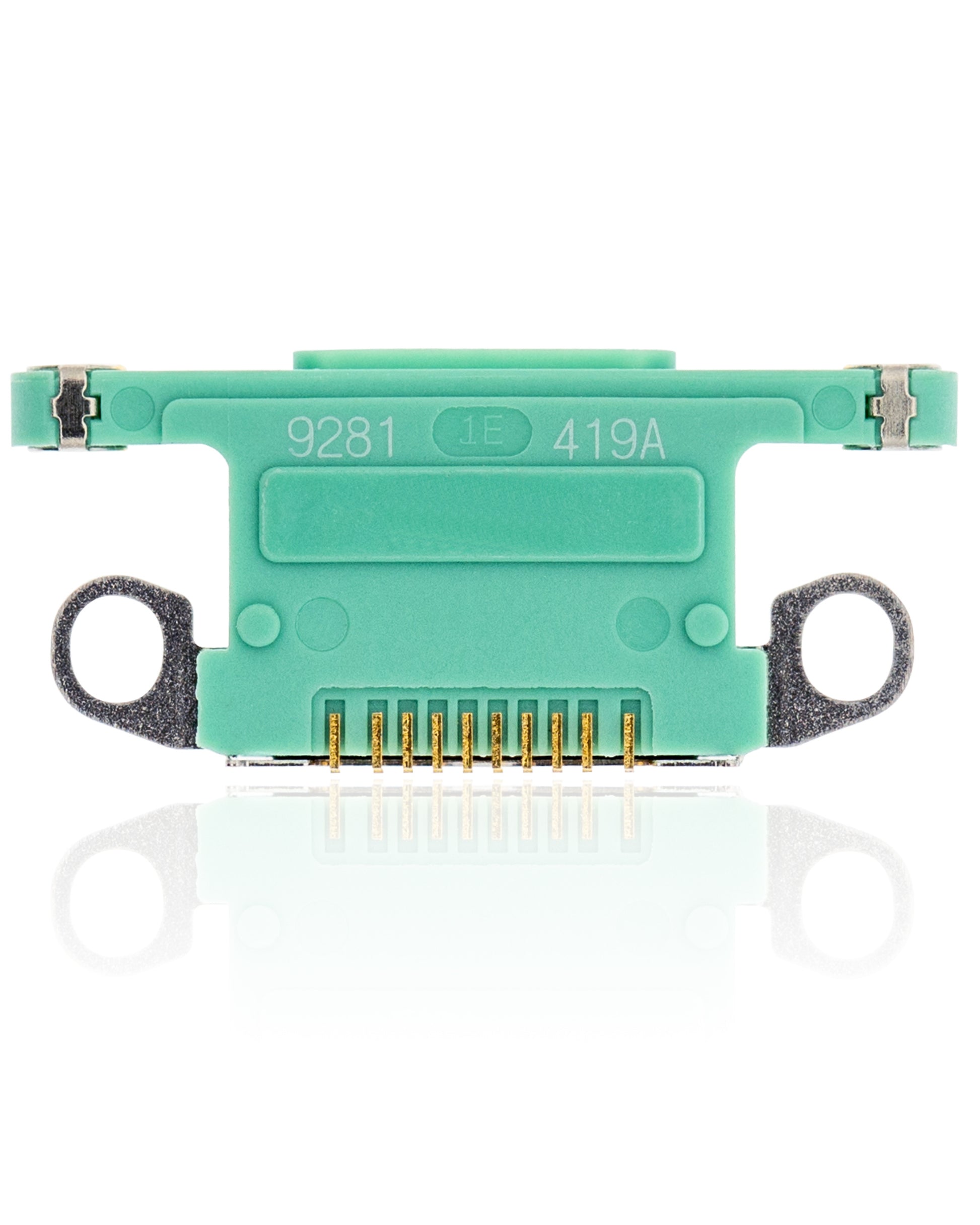

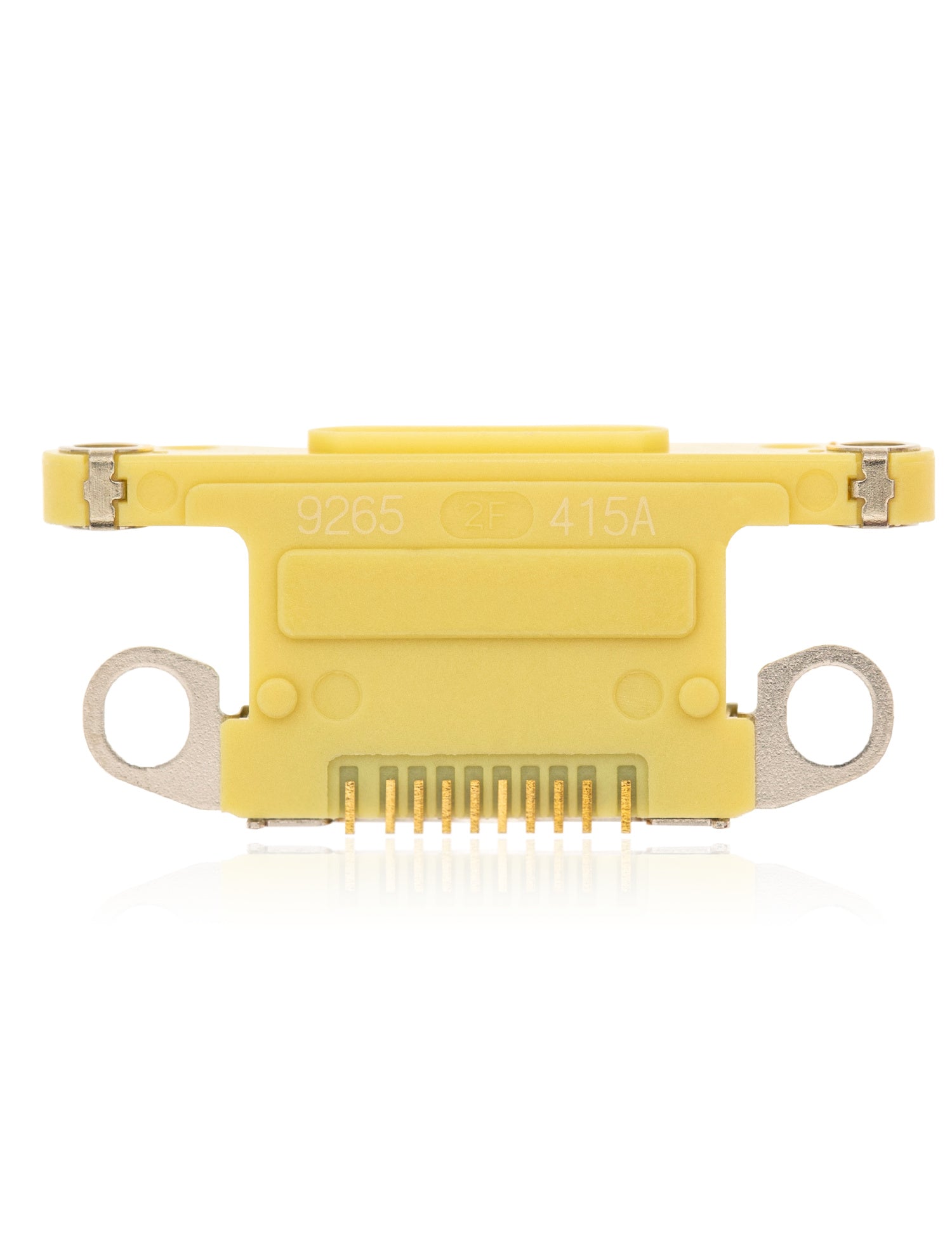

🔥 No Component Flex (Charging Port Only) — ⚠️ Micro-Soldering Required! Single loose physical lightning socket pin. Must desolder the old worn port and solder this piece onto the original factory ribbon. Benefit: Preserves the premium original OEM flex ribbon, native logic elements, and factory antenna connections, eliminating the risk of aftermarket microphone chips triggering system panic boot loops or signal drop-offs.

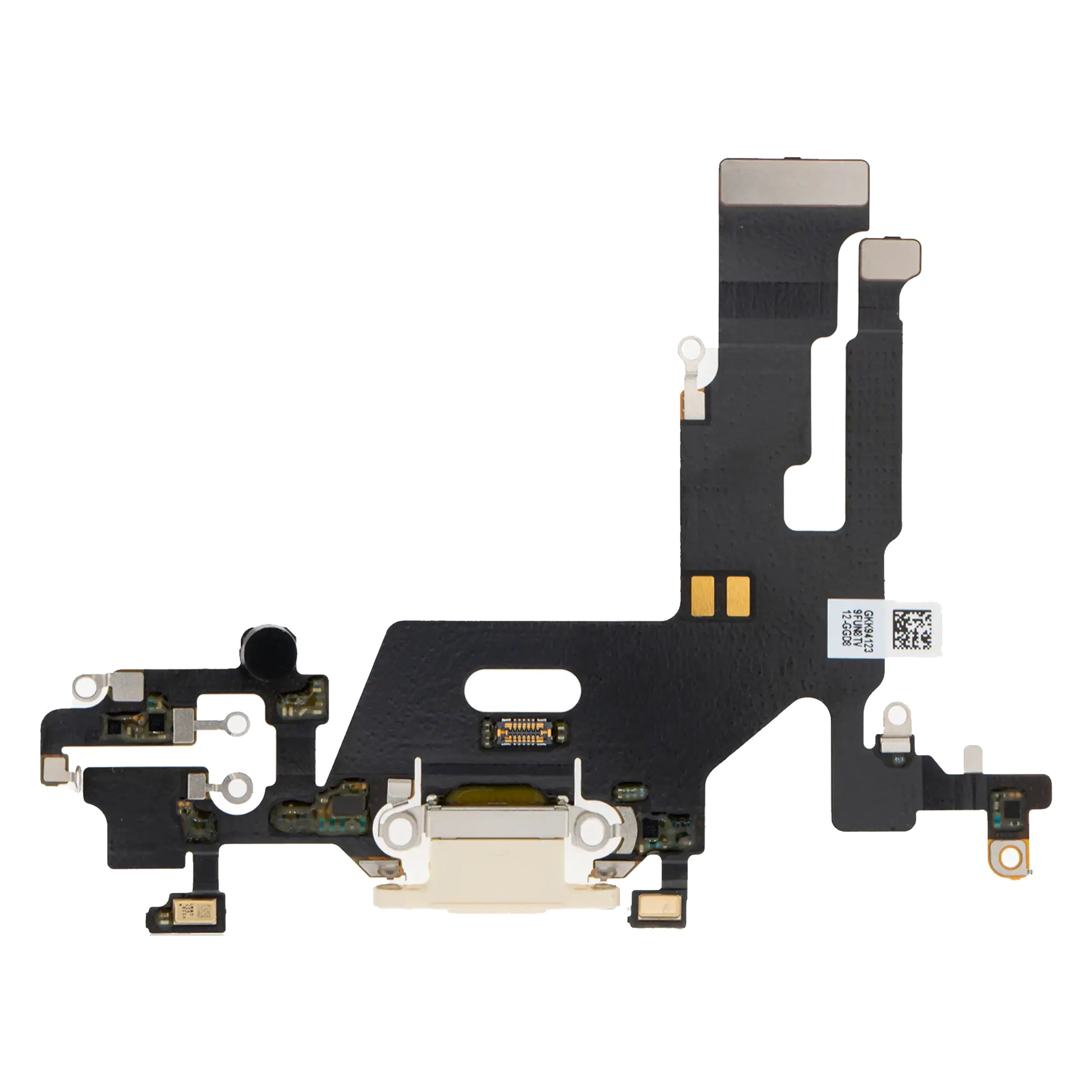

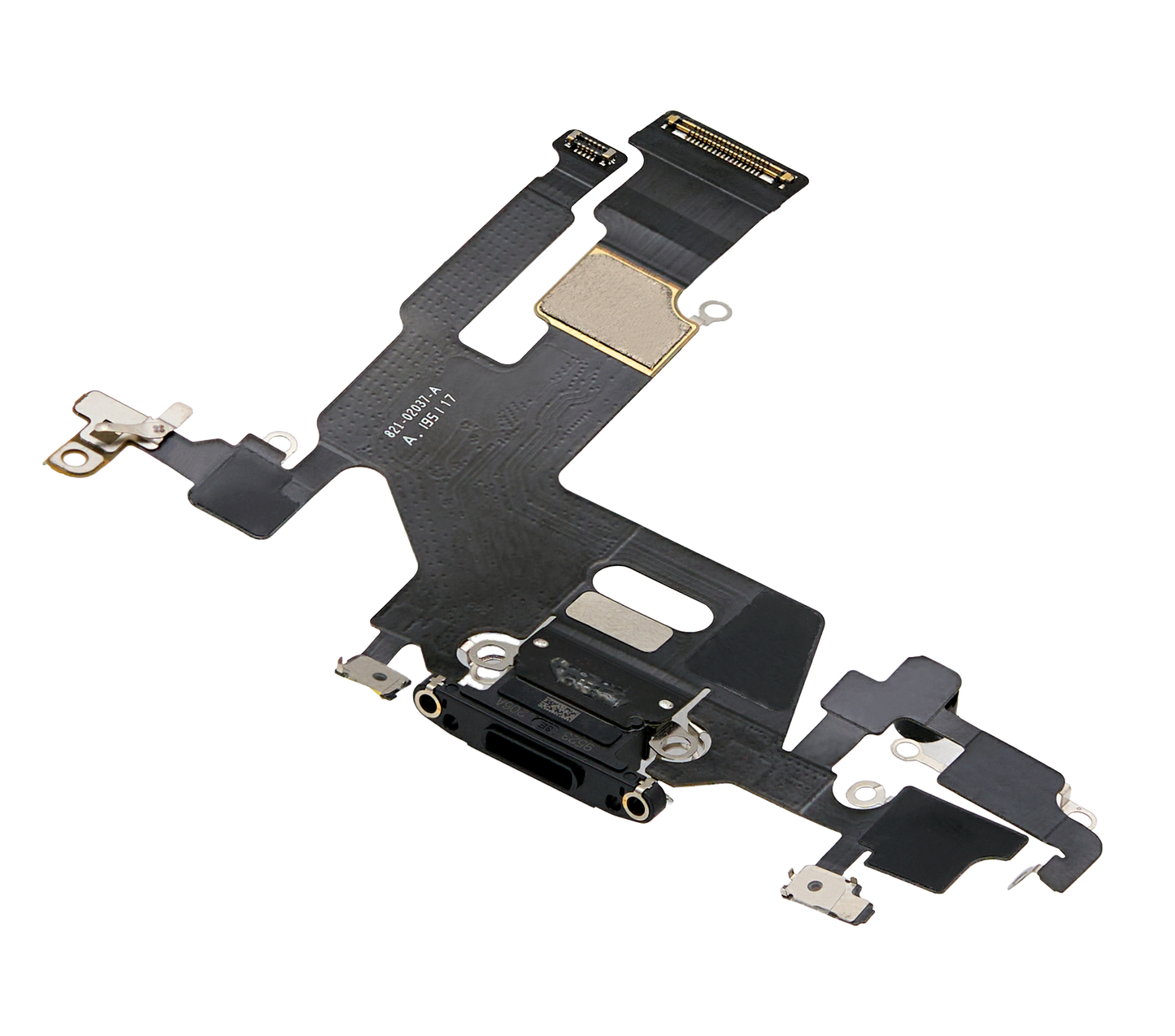

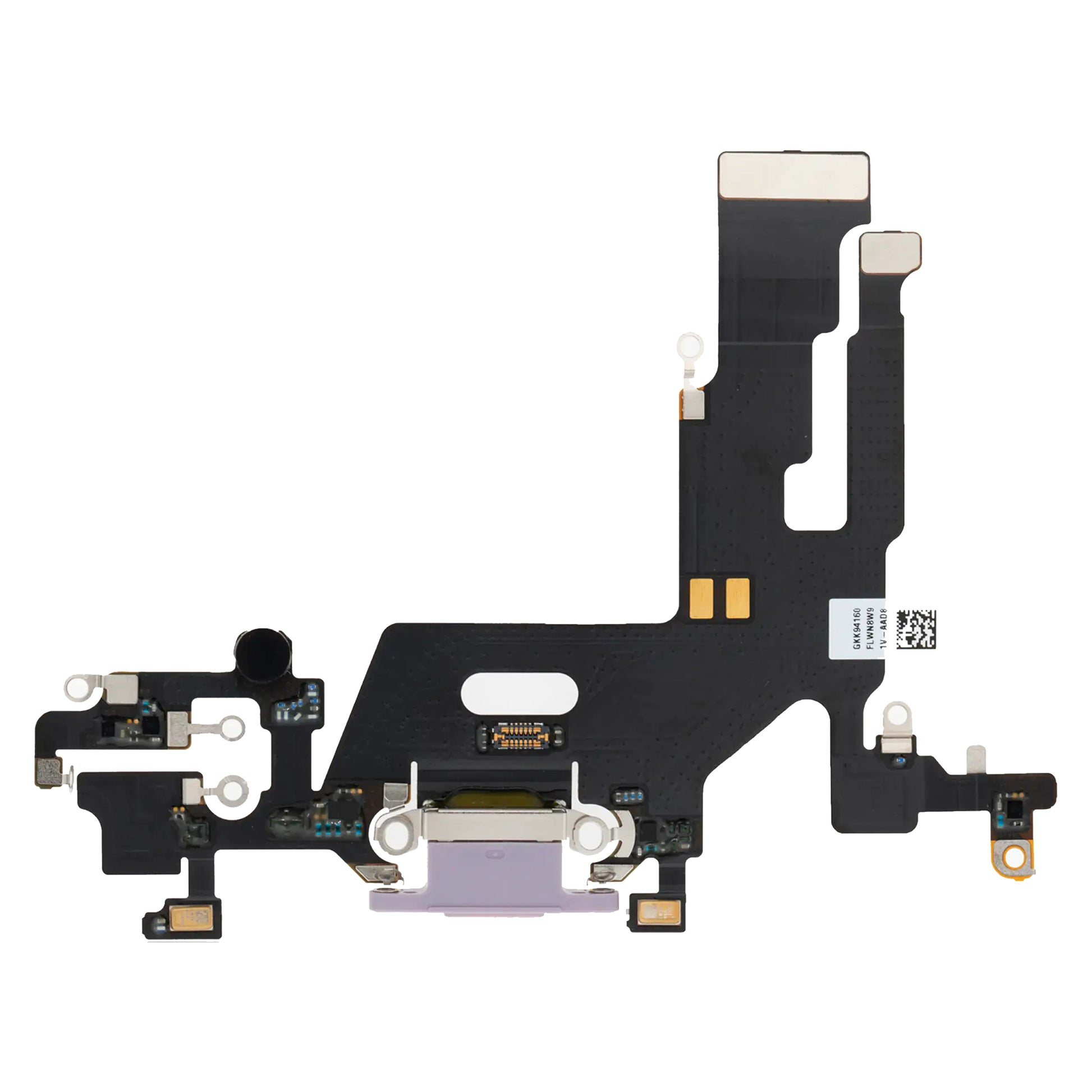

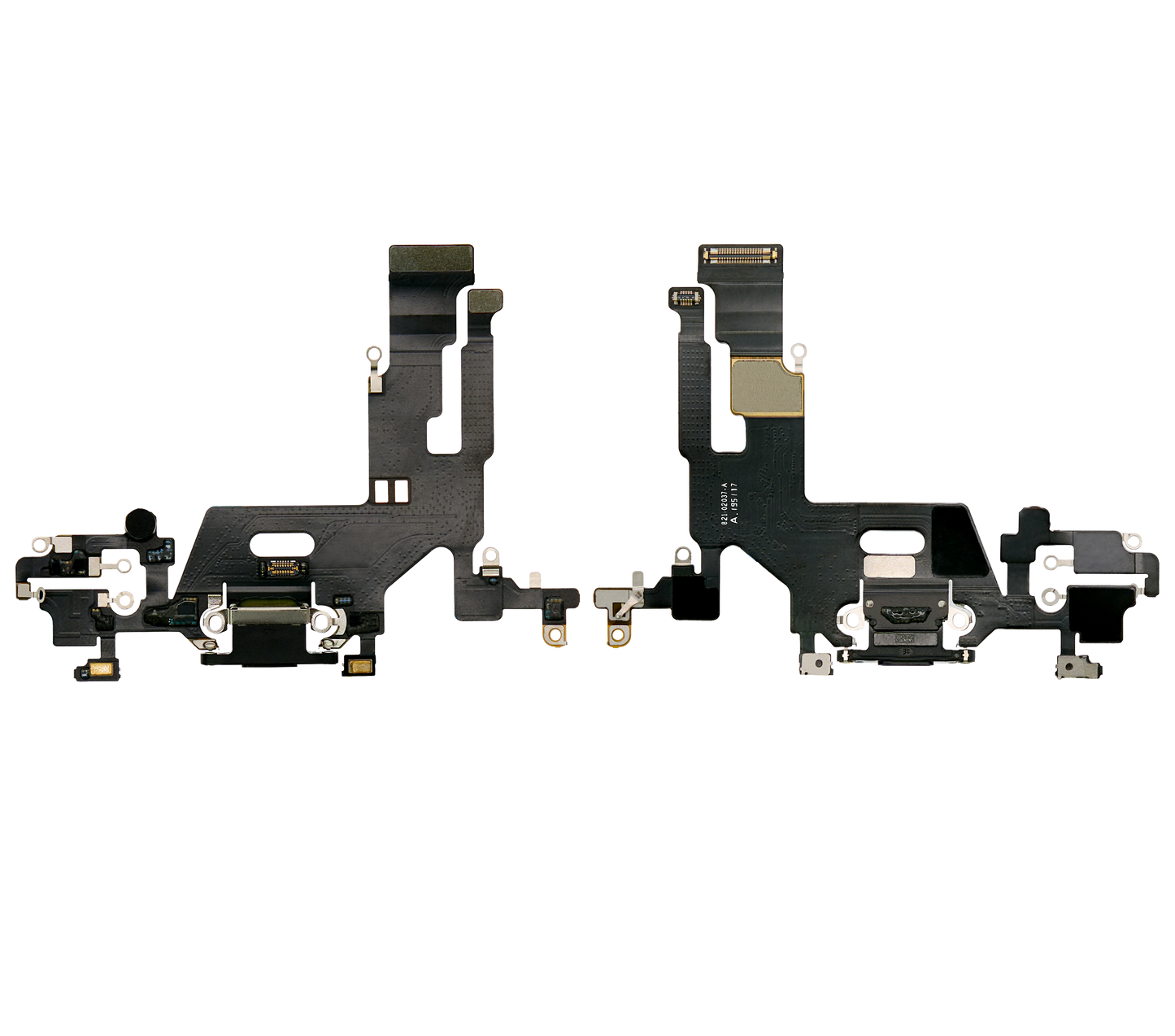

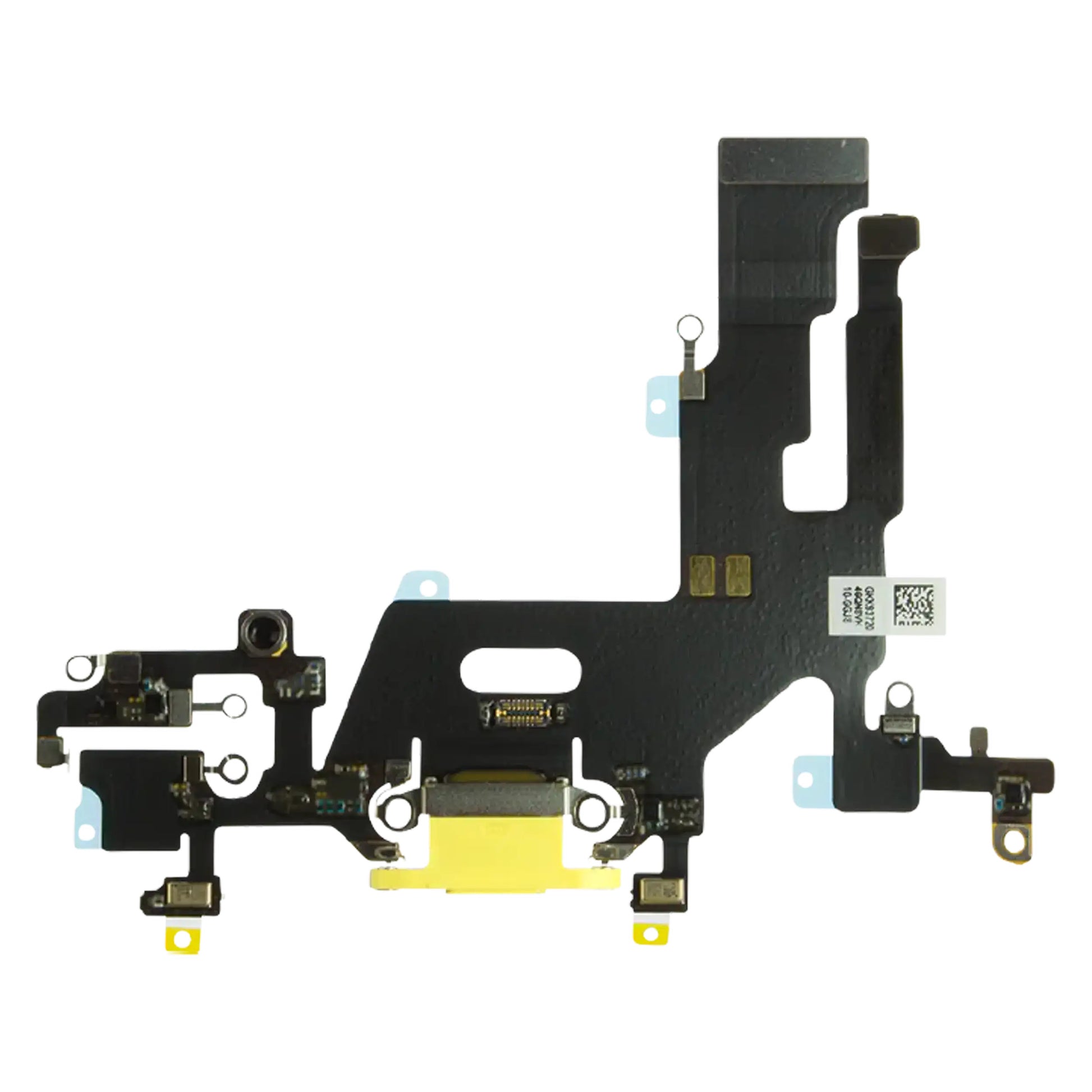

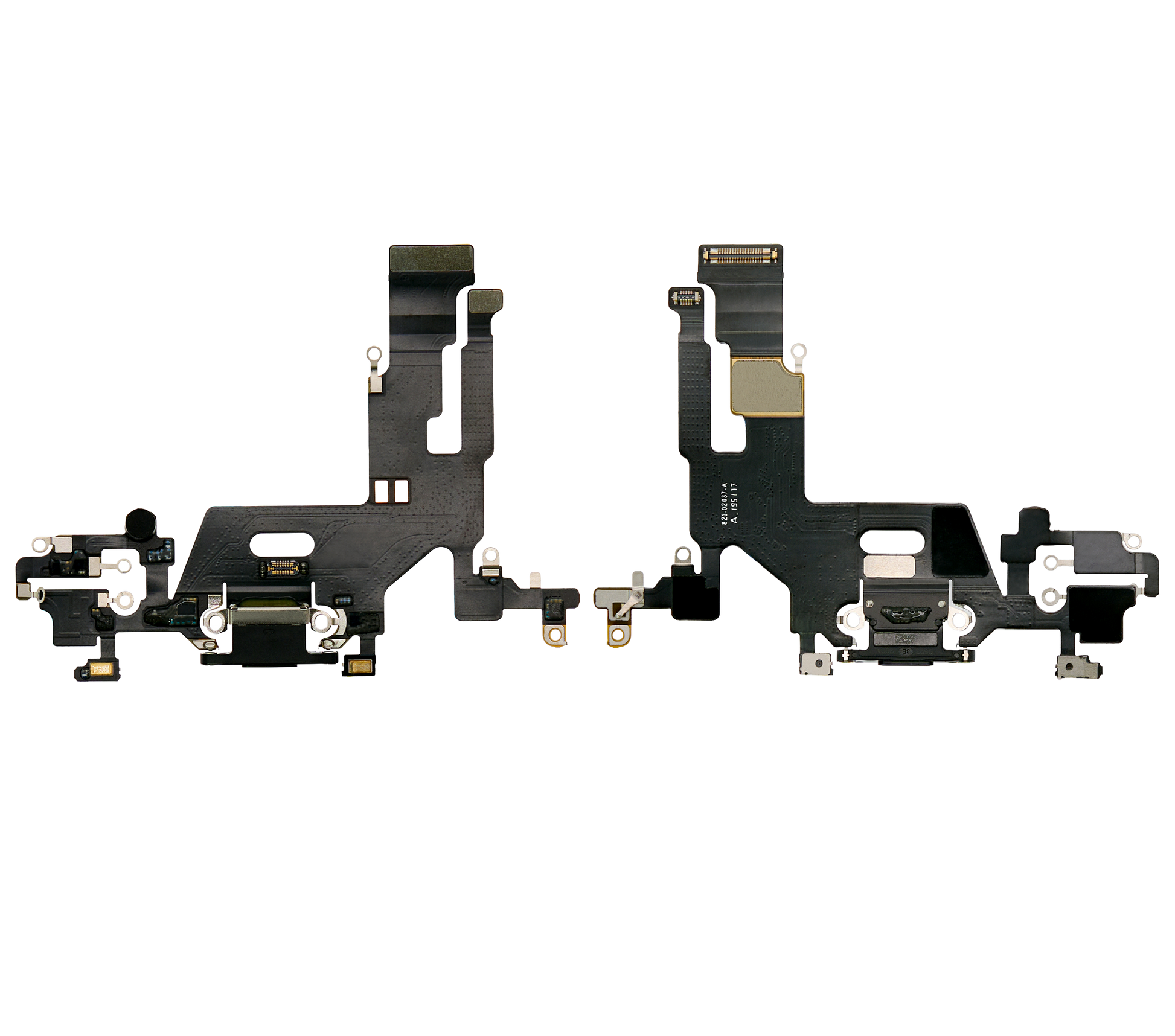

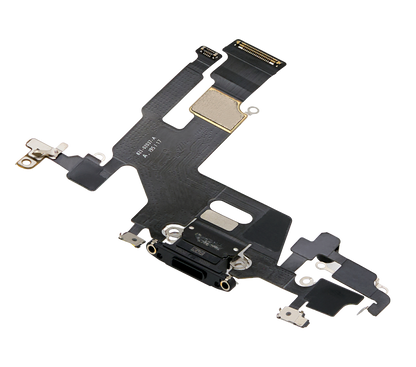

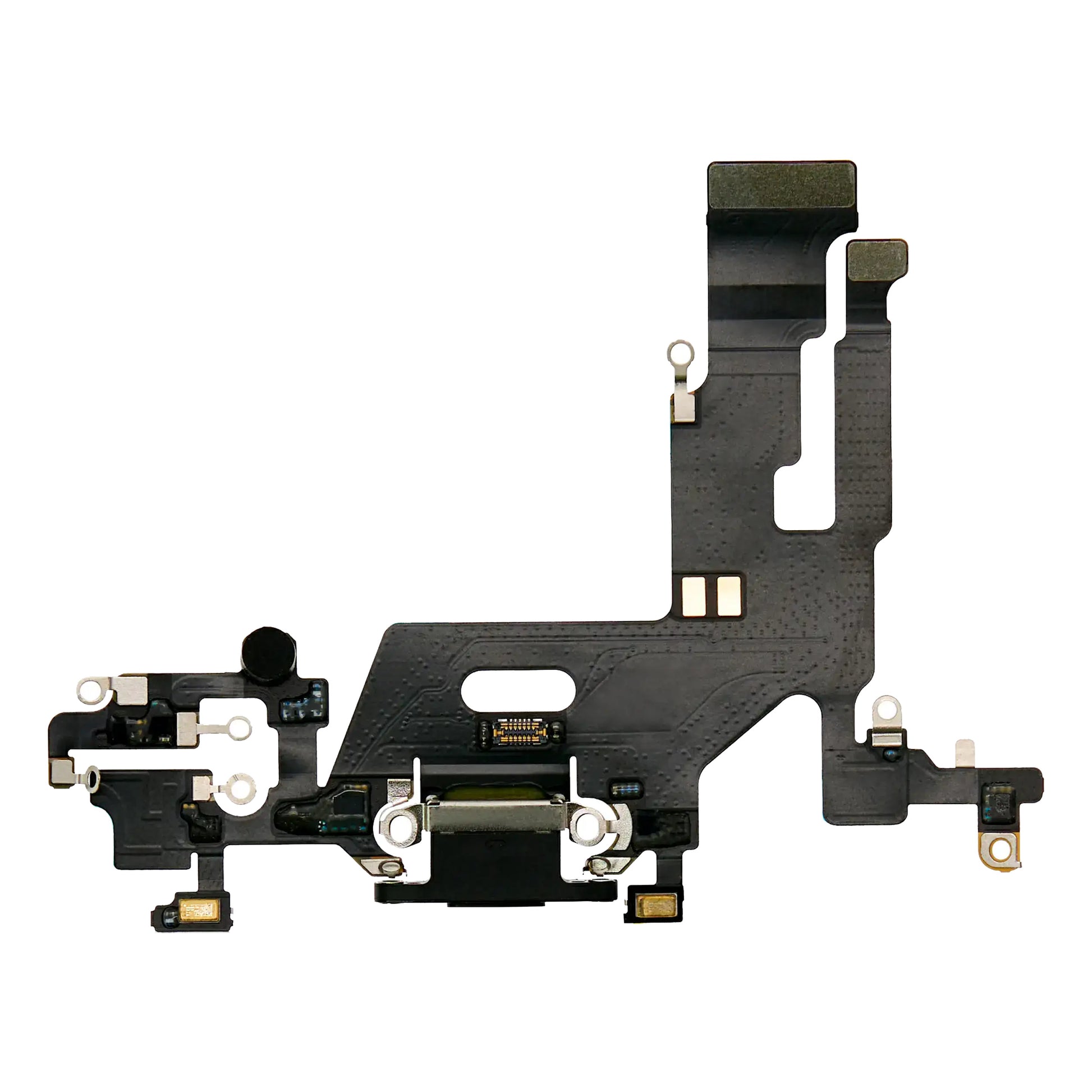

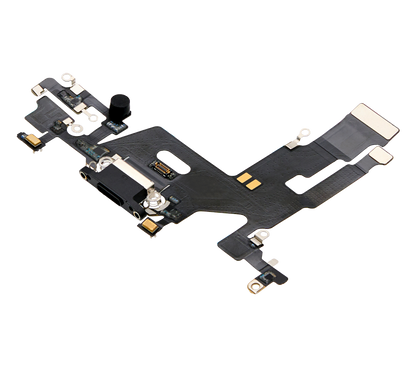

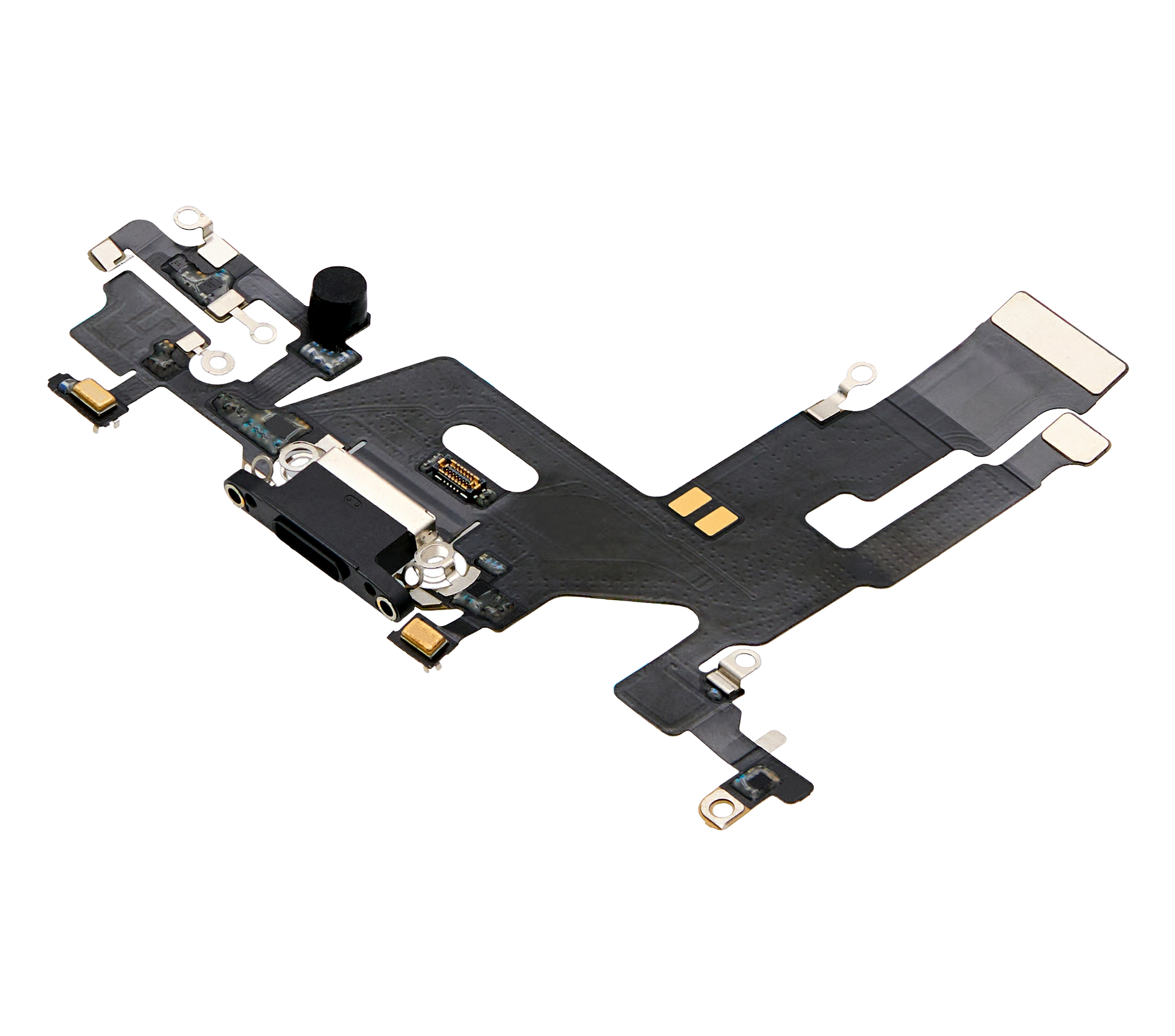

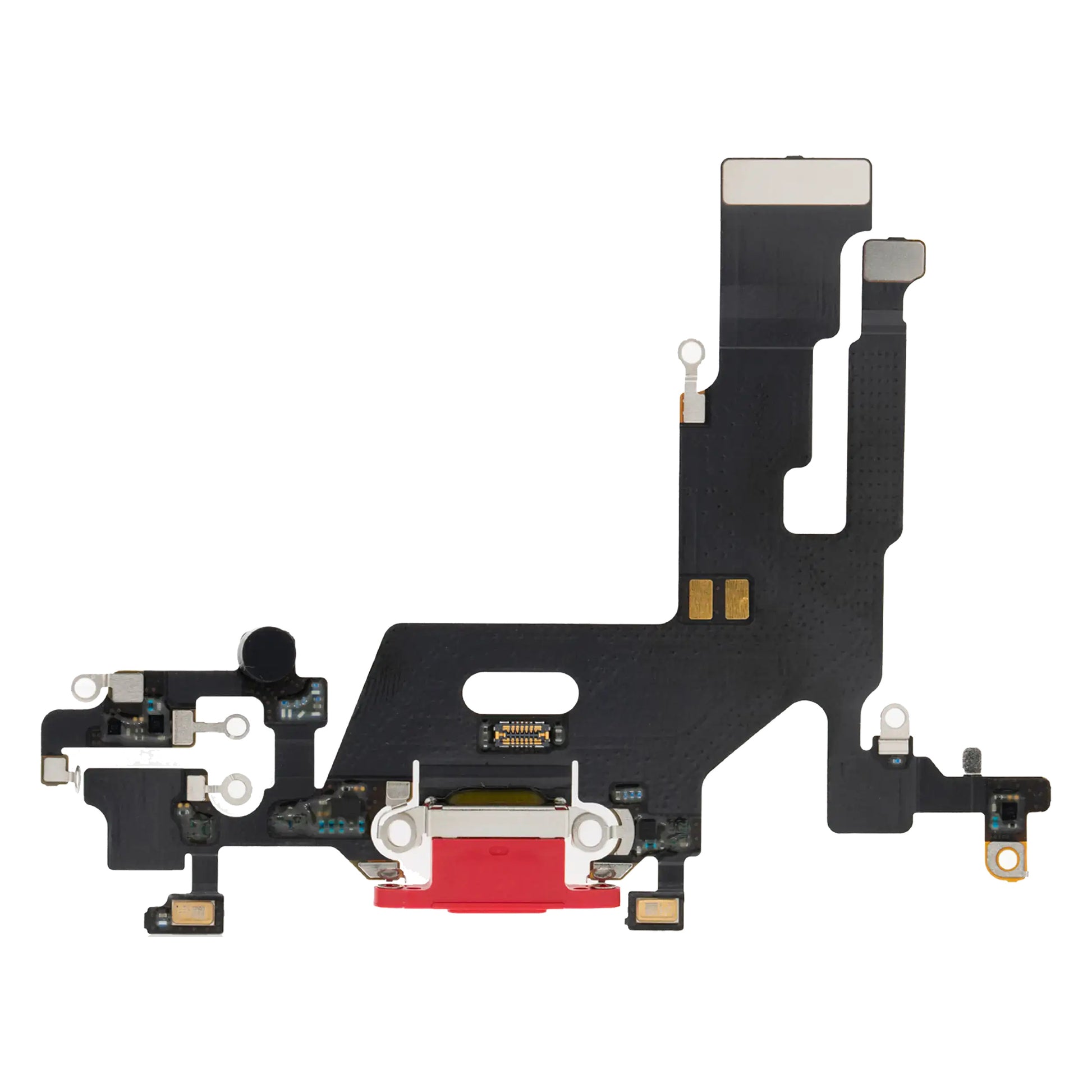

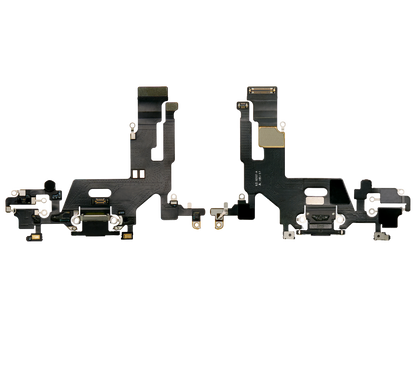

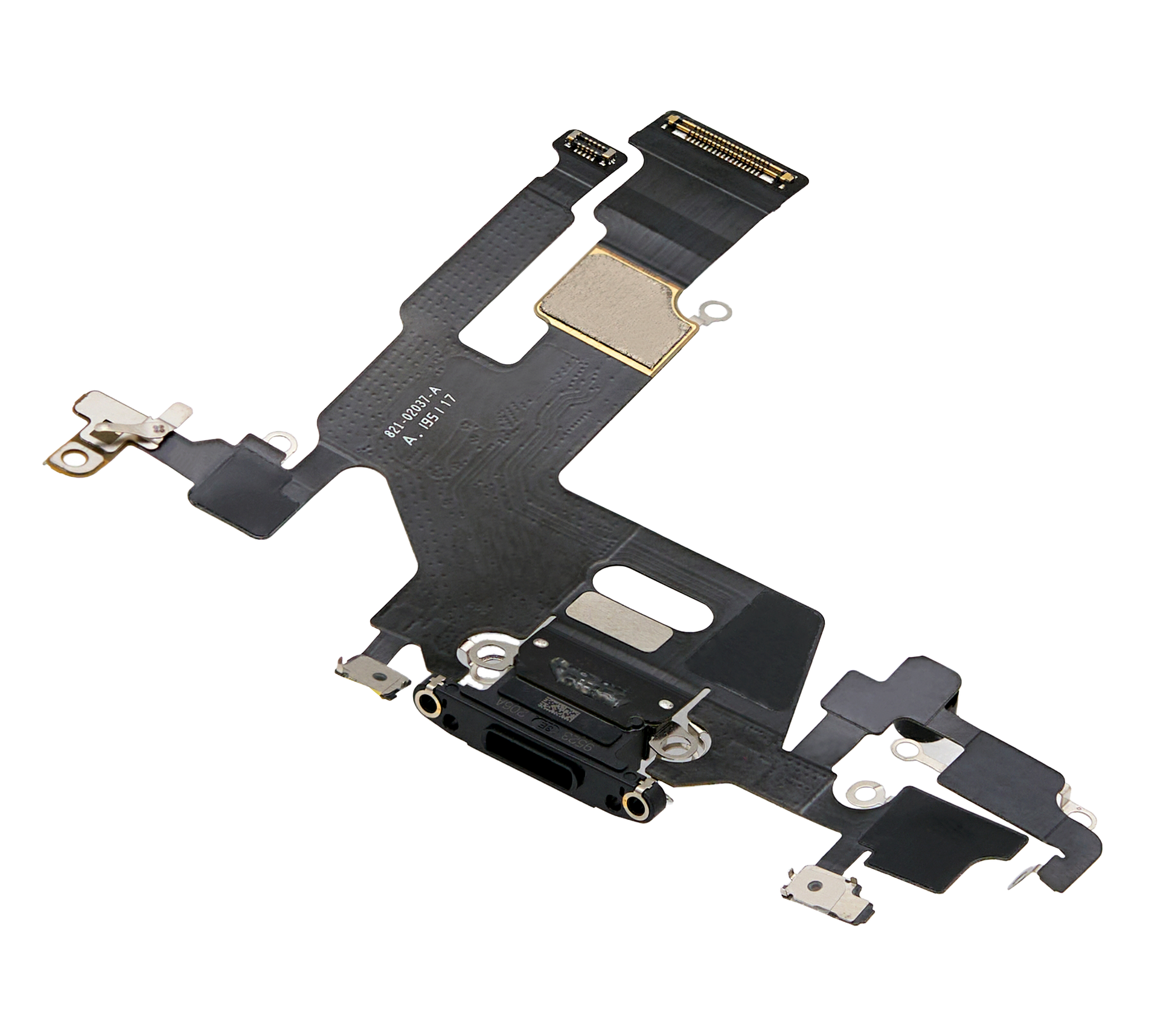

🔌 With Component Flex (Full Ribbon Assembly) — Drop-in Ready! Fully populated plug-and-play ribbon strip. No soldering required, but requires full lower-chassis teardown (loudspeaker, engine, battery removal) to route the new cable and reconnect the underlying antenna arrays.
Variant 2: Color Finish
⚫ Black
⚪ White
🟢 Green
🟡 Yellow
🔴 Red / (Product)RED
🟣 Purple
⚠️ Technical Notice & Handling
⚠️ Precision Folding & Signal Preservation: The cable requires exact alignment along factory creases. Sharp or backward folding will sever microscopic internal copper traces, permanently ruining the flex cable. Reference the original part or review a guide before final seating.
🔩 Screw Leveling & Screen Protection: Standard and standoff screws must return to their exact original locations. Incorrect positioning causes uneven component leveling, creating physical high spots inside the chassis. When the device is closed, these uneven components will exert localized upward pressure against the back of the LCD assembly, causing immediate pressure spots, touch failures, or catastrophic internal screen cracking upon reassembly or minor impact.
📦 Package Information
Contents: 1x Premium Internal Charging Port Dock Component (or Full Ribbon Assembly, depending on variant selection).
Packaging: Shipped in an anti-static ESD shielding bag inside a padded protective shell to prevent transit bending.
